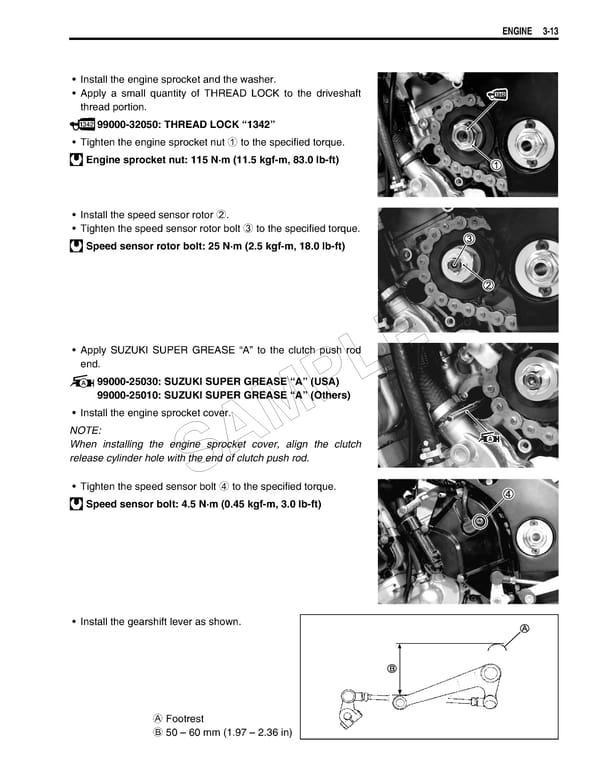

ENGINE 3-13 • Install the engine sprocket and the washer. • Apply a small quantity of THREAD LOCK to the driveshaft thread portion. 99000-32050: THREAD LOCK “1342” • Tighten the engine sprocket nut 1 to the specified torque. Engine sprocket nut: 115 N·m (11.5 kgf-m, 83.0 lb-ft) • Install the speed sensor rotor 2. • Tighten the speed sensor rotor bolt 3 to the specified torque. Speed sensor rotor bolt: 25 N·m (2.5 kgf-m, 18.0 lb-ft) • Apply SUZUKI SUPER GREASE “A” to the clutch push rod E end. L 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others) P • Install the engine sprocket cover. M NOTE: When installing the engine sprocket cover, align the clutch A release cylinder hole with the end of clutch push rod. S • Tighten the speed sensor bolt 4 to the specified torque. Speed sensor bolt: 4.5 N·m (0.45 kgf-m, 3.0 lb-ft) • Install the gearshift lever as shown. A Footrest B 50 – 60 mm (1.97 – 2.36 in)
