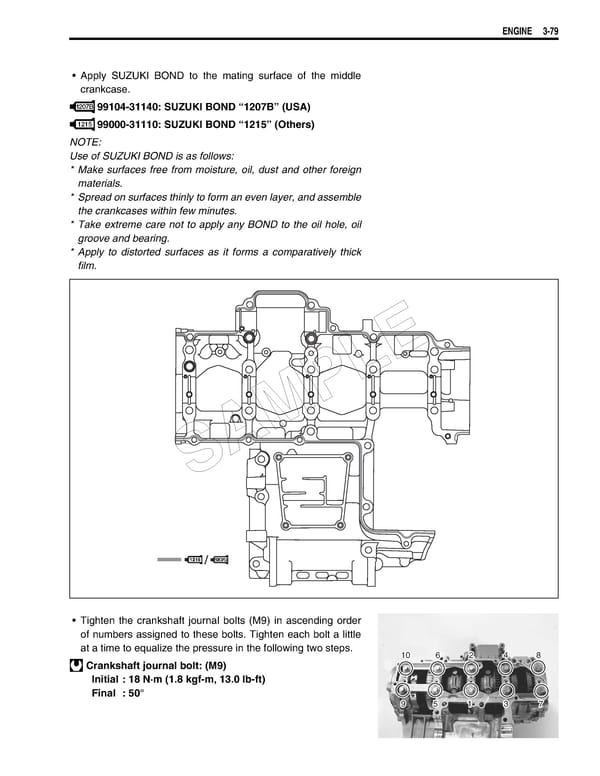

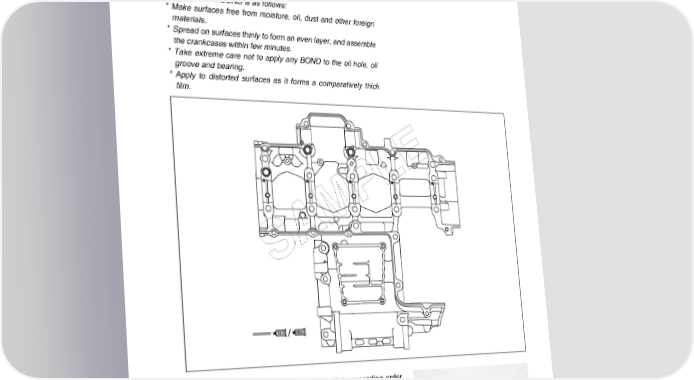

ENGINE 3-79 • Apply SUZUKI BOND to the mating surface of the middle crankcase. 99104-31140: SUZUKI BOND “1207B” (USA) 99000-31110: SUZUKI BOND “1215” (Others) NOTE: Use of SUZUKI BOND is as follows: * Make surfaces free from moisture, oil, dust and other foreign materials. * Spread on surfaces thinly to form an even layer, and assemble the crankcases within few minutes. * Take extreme care not to apply any BOND to the oil hole, oil groove and bearing. * Apply to distorted surfaces as it forms a comparatively thick film. E PL SAM • Tighten the crankshaft journal bolts (M9) in ascending order of numbers assigned to these bolts. Tighten each bolt a little at a time to equalize the pressure in the following two steps. 10 6 2 4 8 Crankshaft journal bolt: (M9) Initial : 18 N·m (1.8 kgf-m, 13.0 lb-ft) Final : 50° 9 5 1 3 7
