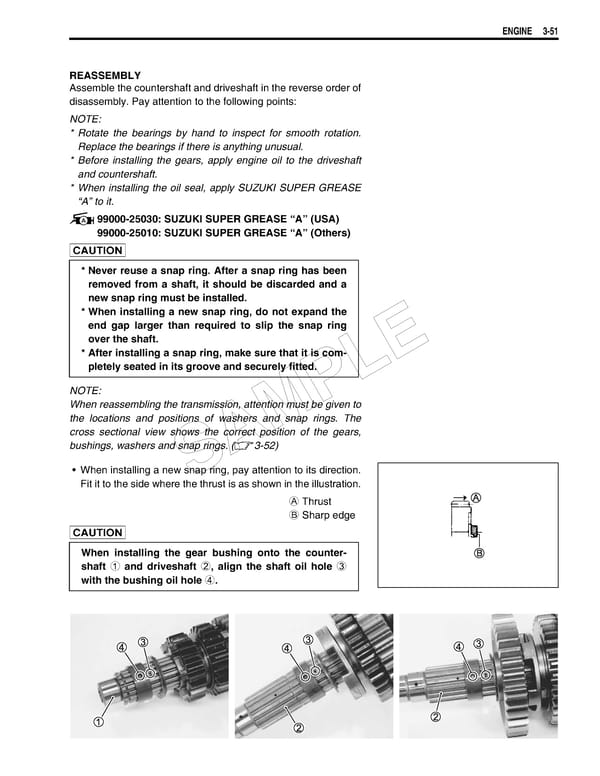

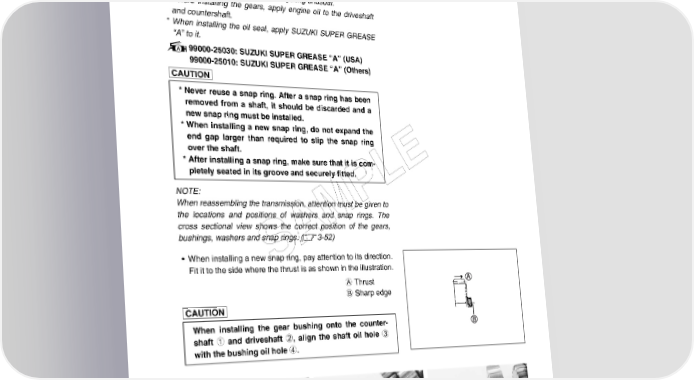

ENGINE 3-51 REASSEMBLY Assemble the countershaft and driveshaft in the reverse order of disassembly. Pay attention to the following points: NOTE: * Rotate the bearings by hand to inspect for smooth rotation. Replace the bearings if there is anything unusual. * Before installing the gears, apply engine oil to the driveshaft and countershaft. * When installing the oil seal, apply SUZUKI SUPER GREASE “A” to it. 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others)  * Never reuse a snap ring. After a snap ring has been removed from a shaft, it should be discarded and a new snap ring must be installed. * When installing a new snap ring, do not expand the end gap larger than required to slip the snap ring over the shaft. * After installing a snap ring, make sure that it is com- E pletely seated in its groove and securely fitted. L NOTE: P When reassembling the transmission, attention must be given to the locations and positions of washers and snap rings. The M cross sectional view shows the correct position of the gears, bushings, washers and snap rings. (3-52) A • When installing a new snap ring, pay attention to its direction. S Fit it to the side where the thrust is as shown in the illustration. A Thrust B Sharp edge  When installing the gear bushing onto the counter- shaft 1 and driveshaft 2, align the shaft oil hole 3 with the bushing oil hole 4.
