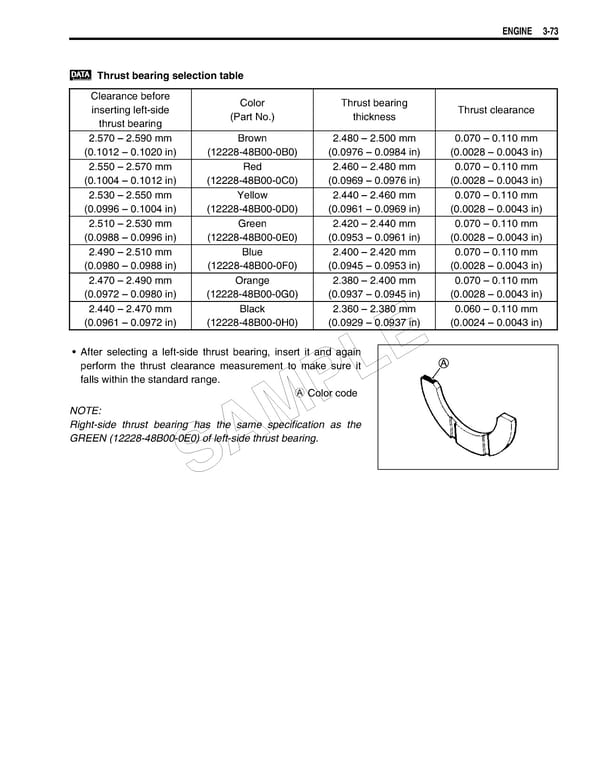

ENGINE 3-73 Thrust bearing selection table Clearance before Color Thrust bearing inserting left-side (Part No.) thickness Thrust clearance thrust bearing 2.570 – 2.590 mm Brown 2.480 – 2.500 mm 0.070 – 0.110 mm (0.1012 – 0.1020 in) (12228-48B00-0B0) (0.0976 – 0.0984 in) (0.0028 – 0.0043 in) 2.550 – 2.570 mm Red 2.460 – 2.480 mm 0.070 – 0.110 mm (0.1004 – 0.1012 in) (12228-48B00-0C0) (0.0969 – 0.0976 in) (0.0028 – 0.0043 in) 2.530 – 2.550 mm Yellow 2.440 – 2.460 mm 0.070 – 0.110 mm (0.0996 – 0.1004 in) (12228-48B00-0D0) (0.0961 – 0.0969 in) (0.0028 – 0.0043 in) 2.510 – 2.530 mm Green 2.420 – 2.440 mm 0.070 – 0.110 mm (0.0988 – 0.0996 in) (12228-48B00-0E0) (0.0953 – 0.0961 in) (0.0028 – 0.0043 in) 2.490 – 2.510 mm Blue 2.400 – 2.420 mm 0.070 – 0.110 mm (0.0980 – 0.0988 in) (12228-48B00-0F0) (0.0945 – 0.0953 in) (0.0028 – 0.0043 in) 2.470 – 2.490 mm Orange 2.380 – 2.400 mm 0.070 – 0.110 mm (0.0972 – 0.0980 in) (12228-48B00-0G0) (0.0937 – 0.0945 in) (0.0028 – 0.0043 in) 2.440 – 2.470 mm Black 2.360 – 2.380 mm 0.060 – 0.110 mm (0.0961 – 0.0972 in) (12228-48B00-0H0) (0.0929 – 0.0937 in) (0.0024 – 0.0043 in) • After selecting a left-side thrust bearing, insert it and again E perform the thrust clearance measurement to make sure it falls within the standard range. L A Color code NOTE: P Right-side thrust bearing has the same specification as the M GREEN (12228-48B00-0E0) of left-side thrust bearing. A S
