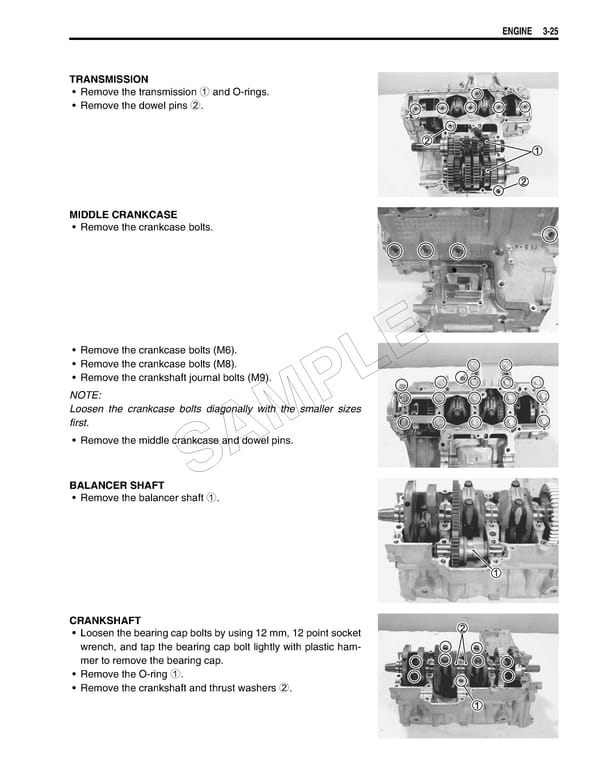

ENGINE 3-25 TRANSMISSION • Remove the transmission 1 and O-rings. • Remove the dowel pins 2. MIDDLE CRANKCASE • Remove the crankcase bolts. • Remove the crankcase bolts (M6). E • Remove the crankcase bolts (M8). • Remove the crankshaft journal bolts (M9). L NOTE: P Loosen the crankcase bolts diagonally with the smaller sizes first. M • Remove the middle crankcase and dowel pins. SA BALANCER SHAFT • Remove the balancer shaft 1. CRANKSHAFT • Loosen the bearing cap bolts by using 12 mm, 12 point socket wrench, and tap the bearing cap bolt lightly with plastic ham- mer to remove the bearing cap. • Remove the O-ring 1. • Remove the crankshaft and thrust washers 2.
