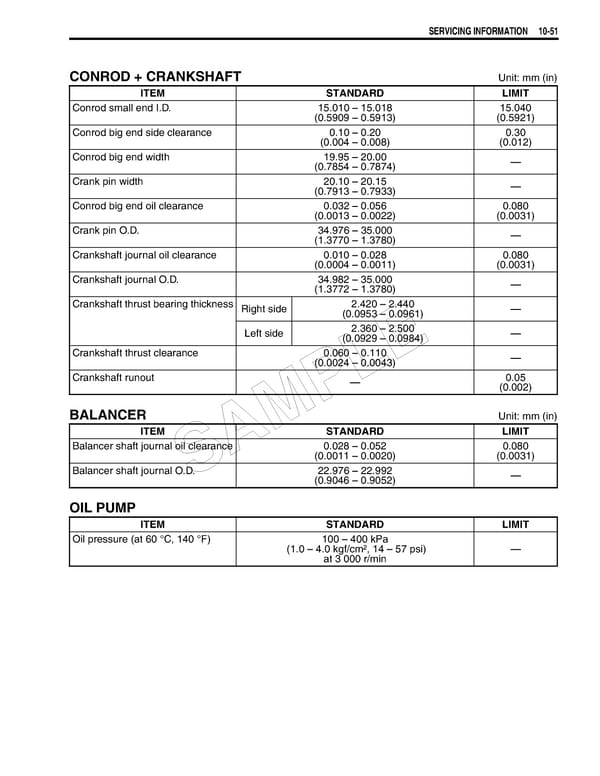

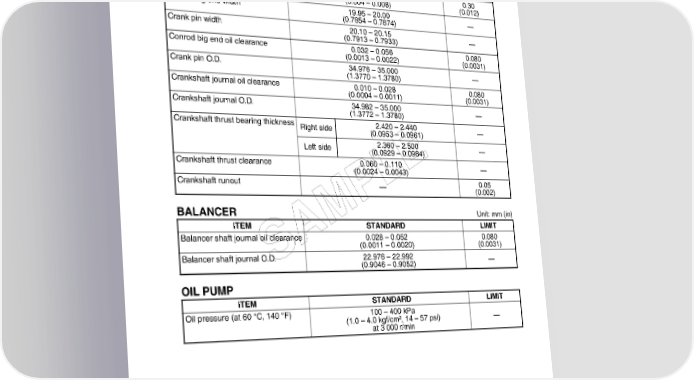

SERVICING INFORMATION 10-51 CONROD + CRANKSHAFT Unit: mm (in) ITEM STANDARD LIMIT Conrod small end I.D. 15.010 – 15.018 15.040 (0.5909 – 0.5913) (0.5921) Conrod big end side clearance 0.10 – 0.20 0.30 (0.004 – 0.008) (0.012) Conrod big end width 19.95 – 20.00 — (0.7854 – 0.7874) Crank pin width 20.10 – 20.15 — (0.7913 – 0.7933) Conrod big end oil clearance 0.032 – 0.056 0.080 (0.0013 – 0.0022) (0.0031) Crank pin O.D. 34.976 – 35.000 — (1.3770 – 1.3780) Crankshaft journal oil clearance 0.010 – 0.028 0.080 (0.0004 – 0.0011) (0.0031) Crankshaft journal O.D. 34.982 – 35.000 — (1.3772 – 1.3780) Crankshaft thrust bearing thickness Right side 2.420 – 2.440 — (0.0953 – 0.0961) Left side 2.360 – 2.500 — (0.0929 – 0.0984) Crankshaft thrust clearance 0.060 – 0.110 E — (0.0024 – 0.0043) Crankshaft runout L 0.05 — (0.002) P BALANCER M Unit: mm (in) ITEM STANDARD LIMIT Balancer shaft journal oil clearance 0.028 – 0.052 0.080 A (0.0011 – 0.0020) (0.0031) Balancer shaft journal O.D. 22.976 – 22.992 S (0.9046 – 0.9052) — OIL PUMP ITEM STANDARD LIMIT Oil pressure (at 60 °C, 140 °F) 100 – 400 kPa (1.0 – 4.0 kgf/cm², 14 – 57 psi) — at 3 000 r/min
