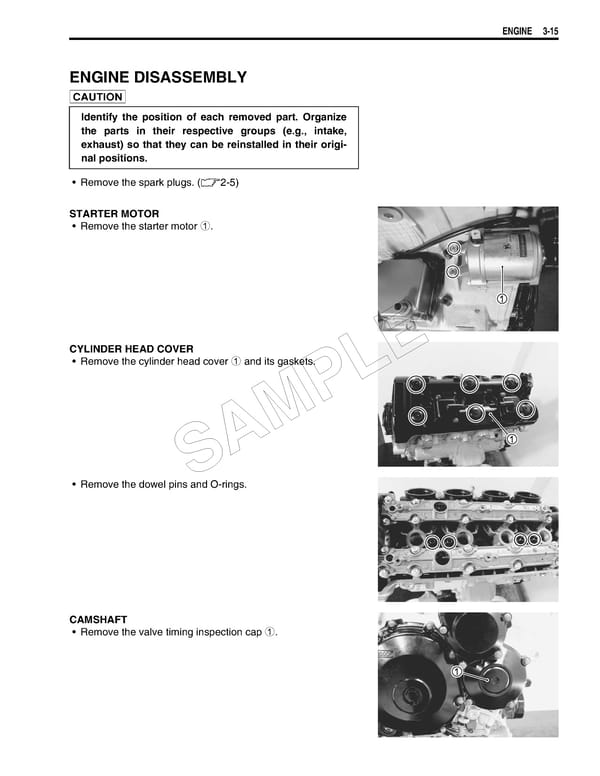

ENGINE 3-15 ENGINE DISASSEMBLY Identify the position of each removed part. Organize the parts in their respective groups (e.g., intake, exhaust) so that they can be reinstalled in their origi- nal positions. • Remove the spark plugs. (2-5) STARTER MOTOR • Remove the starter motor 1. CYLINDER HEAD COVER E • Remove the cylinder head cover 1 and its gaskets. L P M A S • Remove the dowel pins and O-rings. CAMSHAFT • Remove the valve timing inspection cap 1.
