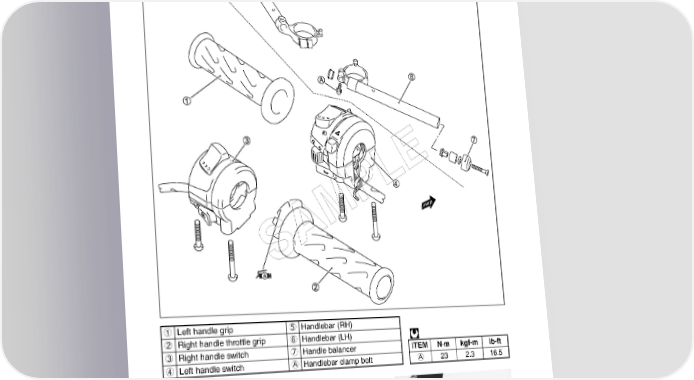

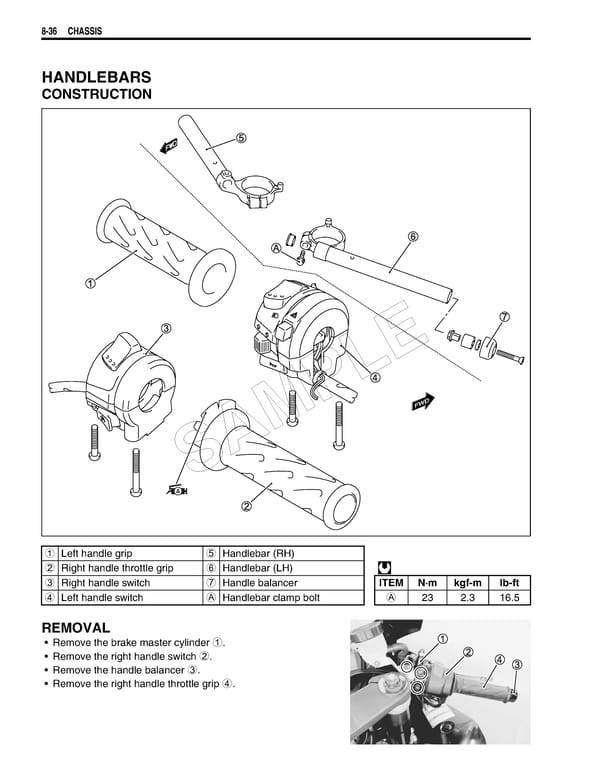

8-36 CHASSIS HANDLEBARS CONSTRUCTION E L P WD M FFWD A S 1 Left handle grip 5 Handlebar (RH) 2 Right handle throttle grip 6 Handlebar (LH)  3 Right handle switch 7 Handle balancer ITEM N·m kgf-m lb-ft 4 Left handle switch A Handlebar clamp bolt A 23 2.3 16.5 REMOVAL • Remove the brake master cylinder 1. • Remove the right handle switch 2. • Remove the handle balancer 3. • Remove the right handle throttle grip 4.
