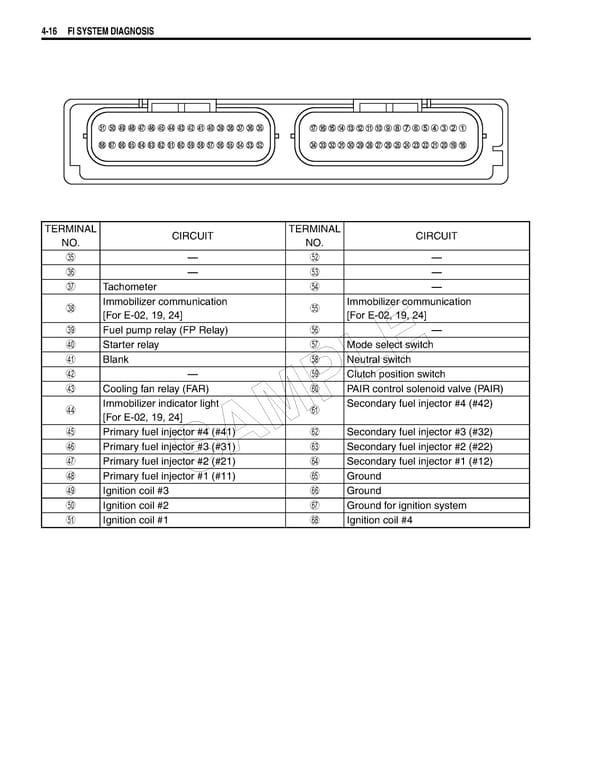

4-16 FI SYSTEM DIAGNOSIS TERMINAL CIRCUIT TERMINAL CIRCUIT NO. NO. Y — l — Z — m — [ Tachometer n — \ Immobilizer communication o Immobilizer communication [For E-02, 19, 24] [For E-02, 19, 24] ] Fuel pump relay (FP Relay) p — ^ Starter relay q Mode select switch E a Blank r Neutral switch b — s Clutch position switch L c Cooling fan relay (FAR) t PAIR control solenoid valve (PAIR) P d Immobilizer indicator light u Secondary fuel injector #4 (#42) [For E-02, 19, 24] M e Primary fuel injector #4 (#41) v Secondary fuel injector #3 (#32) f Primary fuel injector #3 (#31) w Secondary fuel injector #2 (#22) A g Primary fuel injector #2 (#21) x Secondary fuel injector #1 (#12) S h Primary fuel injector #1 (#11) y Ground i Ignition coil #3 z Ground j Ignition coil #2 { Ground for ignition system k Ignition coil #1 | Ignition coil #4
