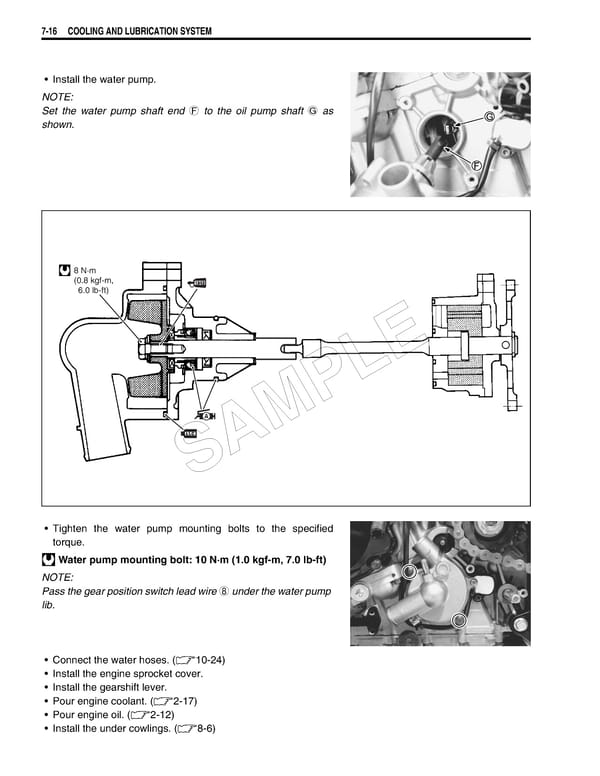

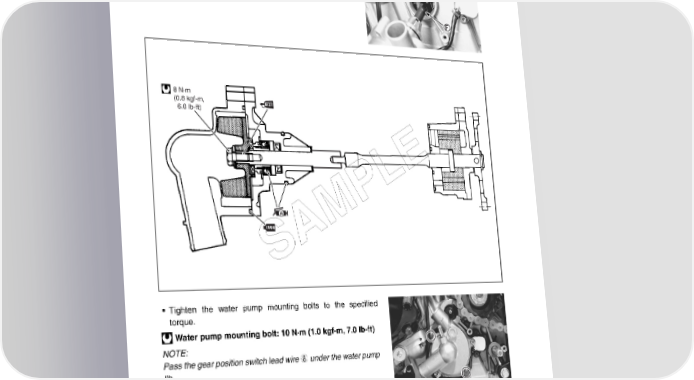

7-16 COOLING AND LUBRICATION SYSTEM • Install the water pump. NOTE: Set the water pump shaft end F to the oil pump shaft G as shown. 8 N·m (0.8 kgf-m, 6.0 lb-ft) E PL SAM • Tighten the water pump mounting bolts to the specified torque. Water pump mounting bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) NOTE: Pass the gear position switch lead wire 8 under the water pump lib. • Connect the water hoses. (10-24) • Install the engine sprocket cover. • Install the gearshift lever. • Pour engine coolant. (2-17) • Pour engine oil. (2-12) • Install the under cowlings. (8-6)
