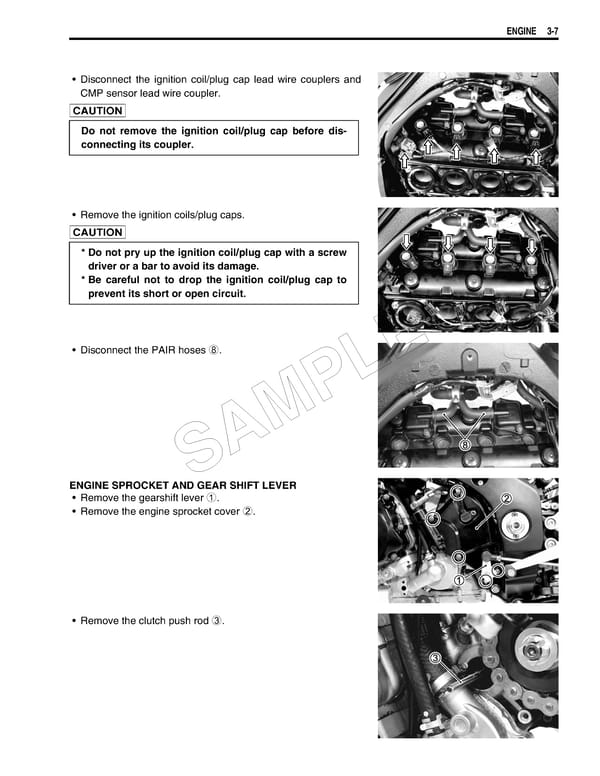

ENGINE 3-7 • Disconnect the ignition coil/plug cap lead wire couplers and CMP sensor lead wire coupler. Do not remove the ignition coil/plug cap before dis- connecting its coupler. • Remove the ignition coils/plug caps. * Do not pry up the ignition coil/plug cap with a screw driver or a bar to avoid its damage. * Be careful not to drop the ignition coil/plug cap to prevent its short or open circuit. • Disconnect the PAIR hoses 8. E L P M A S ENGINE SPROCKET AND GEAR SHIFT LEVER • Remove the gearshift lever 1. • Remove the engine sprocket cover 2. • Remove the clutch push rod 3.
