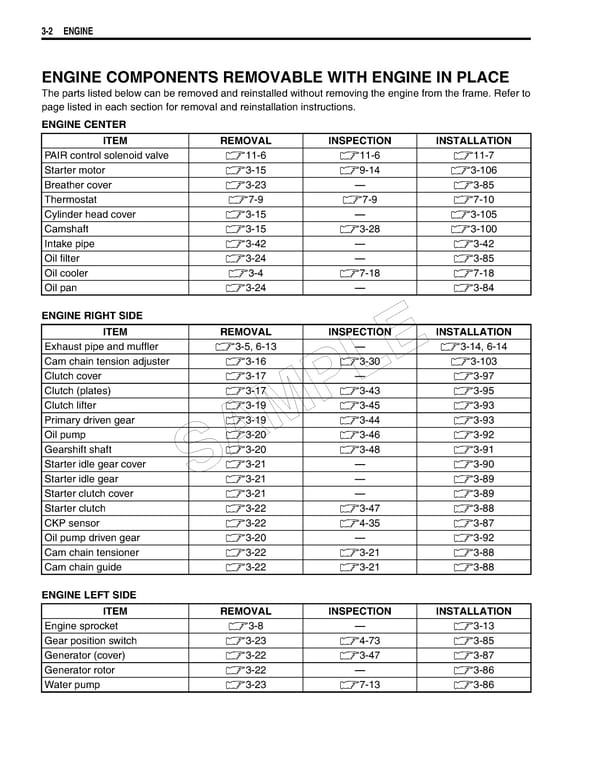

3-2 ENGINE ENGINE COMPONENTS REMOVABLE WITH ENGINE IN PLACE The parts listed below can be removed and reinstalled without removing the engine from the frame. Refer to page listed in each section for removal and reinstallation instructions. ENGINE CENTER ITEM REMOVAL INSPECTION INSTALLATION PAIR control solenoid valve 11-6 11-6 11-7 Starter motor 3-15 9-14 3-106 Breather cover 3-23 — 3-85 Thermostat 7-9 7-9 7-10 Cylinder head cover 3-15 — 3-105 Camshaft 3-15 3-28 3-100 Intake pipe 3-42 — 3-42 Oil filter 3-24 — 3-85 Oil cooler 3-4 7-18 7-18 Oil pan 3-24 — 3-84 ENGINE RIGHT SIDE ITEM REMOVAL INSPECTION INSTALLATION Exhaust pipe and muffler 3-5, 6-13 — E3-14, 6-14 Cam chain tension adjuster 3-16 3-30 3-103 Clutch cover 3-17 — 3-97 L Clutch (plates) 3-17 3-43 3-95 P Clutch lifter 3-19 3-45 3-93 Primary driven gear 3-19 M 3-44 3-93 Oil pump 3-20 3-46 3-92 Gearshift shaft 3-20 3-48 3-91 A Starter idle gear cover 3-21 — 3-90 S Starter idle gear 3-21 — 3-89 Starter clutch cover 3-21 — 3-89 Starter clutch 3-22 3-47 3-88 CKP sensor 3-22 4-35 3-87 Oil pump driven gear 3-20 — 3-92 Cam chain tensioner 3-22 3-21 3-88 Cam chain guide 3-22 3-21 3-88 ENGINE LEFT SIDE ITEM REMOVAL INSPECTION INSTALLATION Engine sprocket 3-8 — 3-13 Gear position switch 3-23 4-73 3-85 Generator (cover) 3-22 3-47 3-87 Generator rotor 3-22 — 3-86 Water pump 3-23 7-13 3-86
