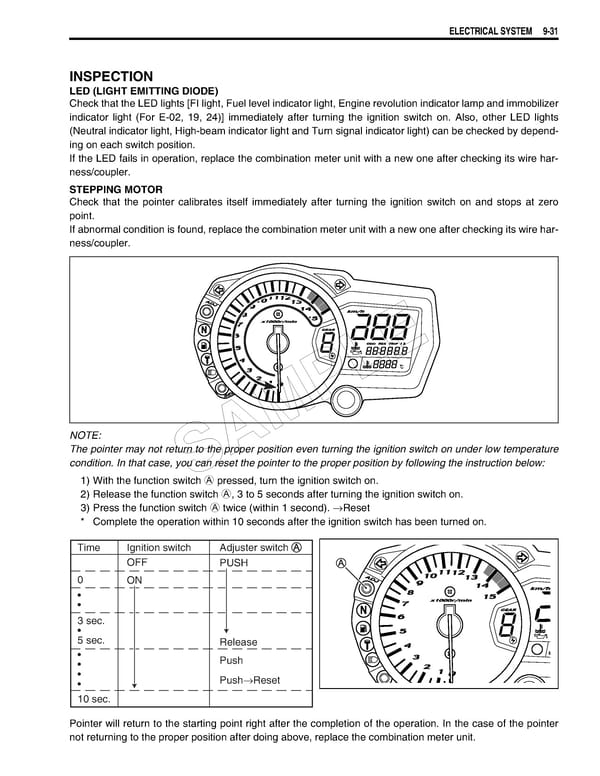

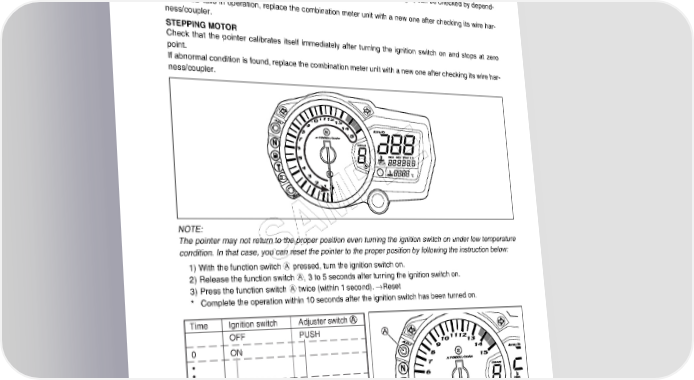

ELECTRICAL SYSTEM 9-31 INSPECTION LED (LIGHT EMITTING DIODE) Check that the LED lights [FI light, Fuel level indicator light, Engine revolution indicator lamp and immobilizer indicator light (For E-02, 19, 24)] immediately after turning the ignition switch on. Also, other LED lights (Neutral indicator light, High-beam indicator light and Turn signal indicator light) can be checked by depend- ing on each switch position. If the LED fails in operation, replace the combination meter unit with a new one after checking its wire har- ness/coupler. STEPPING MOTOR Check that the pointer calibrates itself immediately after turning the ignition switch on and stops at zero point. If abnormal condition is found, replace the combination meter unit with a new one after checking its wire har- ness/coupler. PLE NOTE: M The pointer may not return to the proper position even turning the ignition switch on under low temperature A condition. In that case, you can reset the pointer to the proper position by following the instruction below: S 1) With the function switch A pressed, turn the ignition switch on. 2) Release the function switch A, 3 to 5 seconds after turning the ignition switch on. 3) Press the function switch A twice (within 1 second). →Reset * Complete the operation within 10 seconds after the ignition switch has been turned on. Time Ignition switch Adjuster switch OFF PUSH 0 ON • • 3 sec. • 5 sec. Release • Push • • Push→Reset • 10 sec. Pointer will return to the starting point right after the completion of the operation. In the case of the pointer not returning to the proper position after doing above, replace the combination meter unit.
