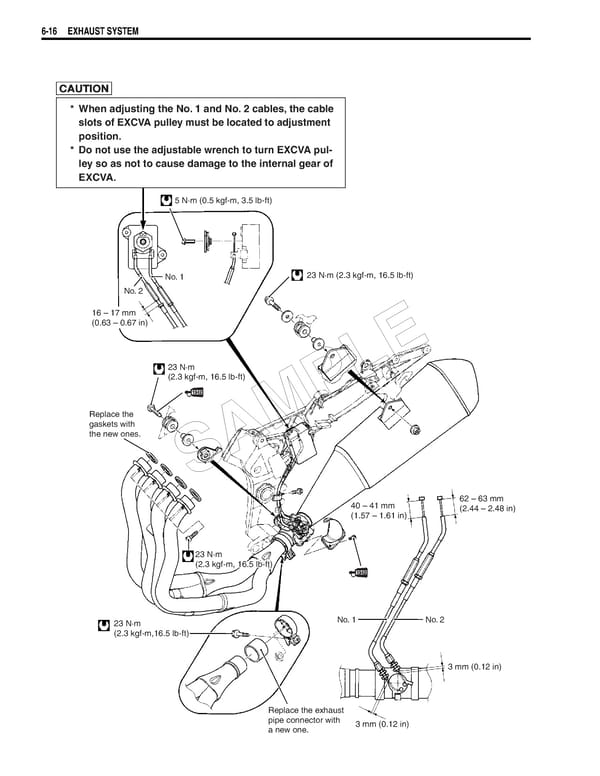

6-16 EXHAUST SYSTEM * When adjusting the No. 1 and No. 2 cables, the cable slots of EXCVA pulley must be located to adjustment position. * Do not use the adjustable wrench to turn EXCVA pul- ley so as not to cause damage to the internal gear of EXCVA. 5 N·m (0.5 kgf-m, 3.5 lb-ft) No. 1 23 N·m (2.3 kgf-m, 16.5 lb-ft) No. 2 16 – 17 mm (0.63 – 0.67 in) E 23 N·m (2.3 kgf-m, 16.5 lb-ft) PL Replace the gaskets with M the new ones. SA 40 – 41 mm 62 – 63 mm (1.57 – 1.61 in) (2.44 – 2.48 in) 23 N·m (2.3 kgf-m, 16.5 lb-ft) 23 N·m No. 1 No. 2 (2.3 kgf-m,16.5 lb-ft) 3 mm (0.12 in) Replace the exhaust pipe connector with 3 mm (0.12 in) a new one.
