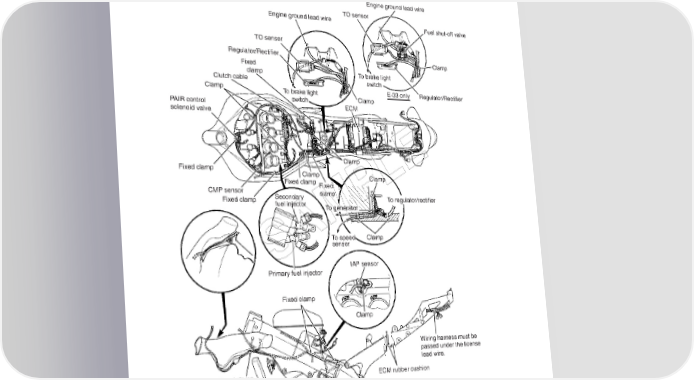

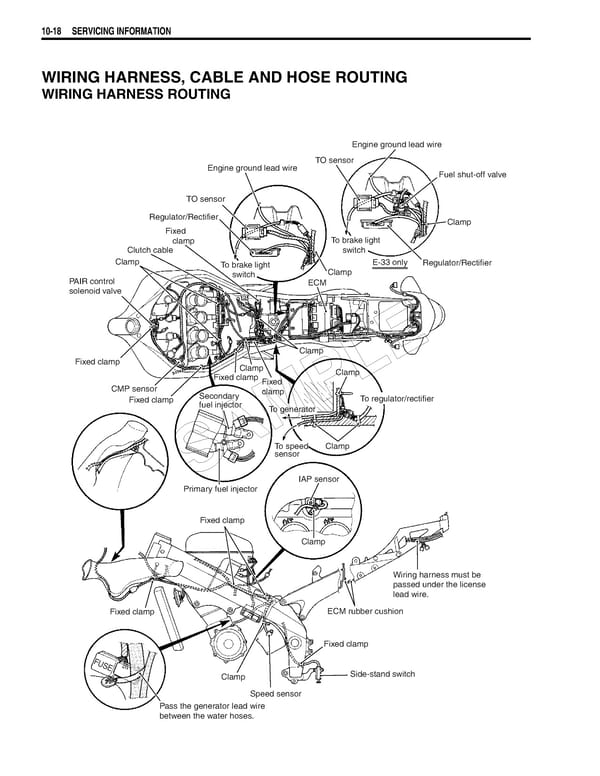

10-18 SERVICING INFORMATION WIRING HARNESS, CABLE AND HOSE ROUTING WIRING HARNESS ROUTING Engine ground lead wire TO sensor Engine ground lead wire Fuel shut-off valve TO sensor Regulator/Rectifier Clamp Fixed clamp To brake light Clutch cable switch Clamp To brake light E-33 only Regulator/Rectifier switch Clamp PAIR control ECM solenoid valve Clamp E Fixed clamp Clamp Fixed clamp Clamp Fixed L CMP sensor clamp Fixed clamp Secondary PTo regulator/rectifier fuel injector To generator M ATo speed Clamp S sensor IAP sensor Primary fuel injector Fixed clamp Clamp Wiring harness must be passed under the license lead wire. Fixed clamp ECM rubber cushion Fixed clamp FUSE Clamp Side-stand switch Speed sensor Pass the generator lead wire between the water hoses.
