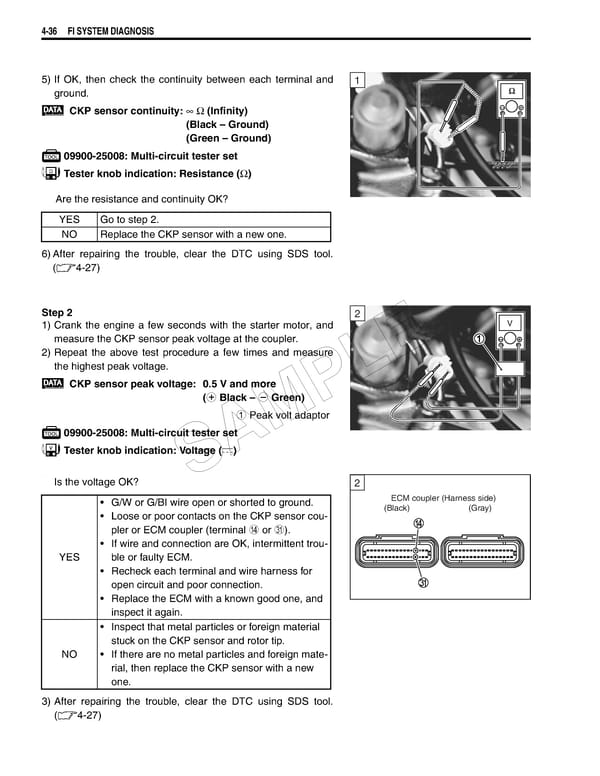

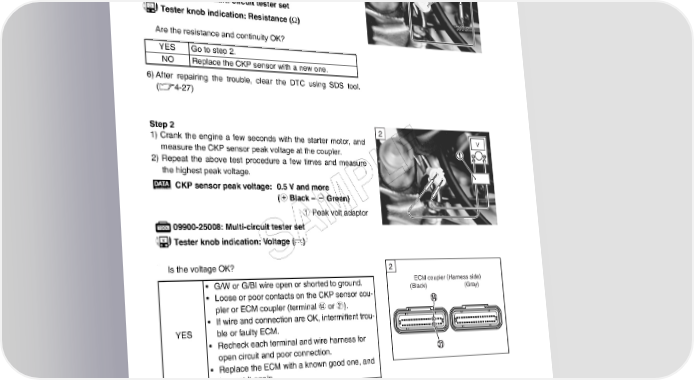

4-36 FI SYSTEM DIAGNOSIS 5) If OK, then check the continuity between each terminal and 1 ground. CKP sensor continuity:∞ Ω (Infinity) (Black – Ground) (Green – Ground) 09900-25008: Multi-circuit tester set Tester knob indication: Resistance (Ω) Are the resistance and continuity OK? YES Go to step 2. NO Replace the CKP sensor with a new one. 6)After repairing the trouble, clear the DTC using SDS tool. (4-27) Step 2 2 1) Crank the engine a few seconds with the starter motor, and V measure the CKP sensor peak voltage at the coupler. 2) Repeat the above test procedure a few times and measure E the highest peak voltage. L CKP sensor peak voltage: 0.5 V and more (+ Black – - Green) P 1 Peak volt adaptor 09900-25008: Multi-circuit tester set M Tester knob indication: Voltage () A . Is the voltage OK? S 2 • G/W or G/BI wire open or shorted to ground. ECM coupler (Harness side) • Loose or poor contacts on the CKP sensor cou- (Black) (Gray) pler or ECM coupler (terminal D or U). • If wire and connection are OK, intermittent trou- YES ble or faulty ECM. • Recheck each terminal and wire harness for open circuit and poor connection. • Replace the ECM with a known good one, and inspect it again. • Inspect that metal particles or foreign material stuck on the CKP sensor and rotor tip. NO • If there are no metal particles and foreign mate- rial, then replace the CKP sensor with a new one. 3) After repairing the trouble, clear the DTC using SDS tool. (4-27)
