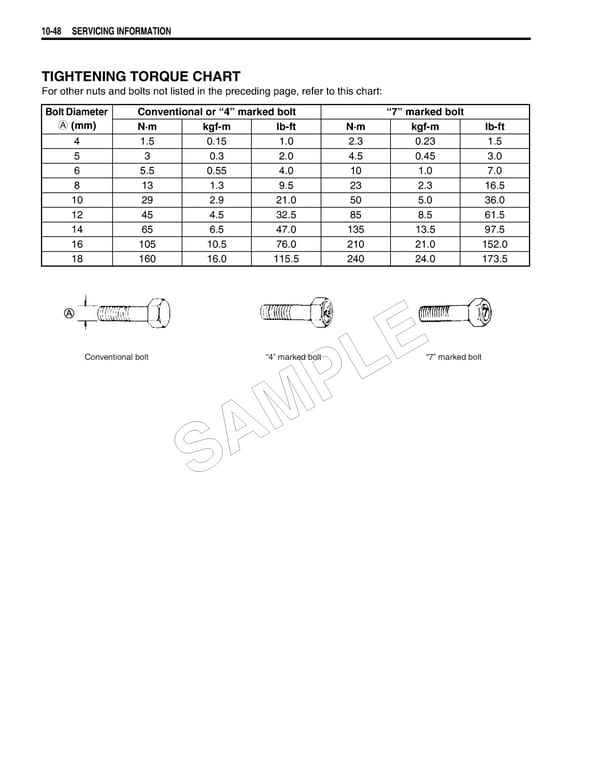

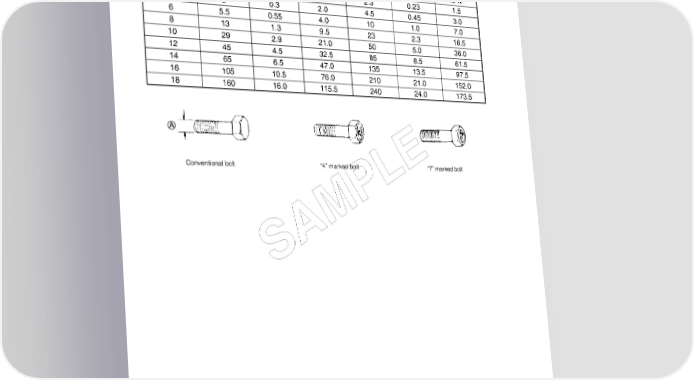

10-48 SERVICING INFORMATION TIGHTENING TORQUE CHART For other nuts and bolts not listed in the preceding page, refer to this chart: Bolt Diameter Conventional or “4” marked bolt “7” marked bolt A (mm) N·m kgf-m lb-ft N·m kgf-m lb-ft 4 1.5 0.15 1.0 2.3 0.23 1.5 5 3 0.3 2.0 4.5 0.45 3.0 6 5.5 0.55 4.0 10 1.0 7.0 8 13 1.3 9.5 23 2.3 16.5 10 29 2.9 21.0 50 5.0 36.0 12 45 4.5 32.5 85 8.5 61.5 14 65 6.5 47.0 135 13.5 97.5 16 105 10.5 76.0 210 21.0 152.0 18 160 16.0 115.5 240 24.0 173.5 Conventional bolt “4” marked bolt “7” marked bolt E PL SAM
