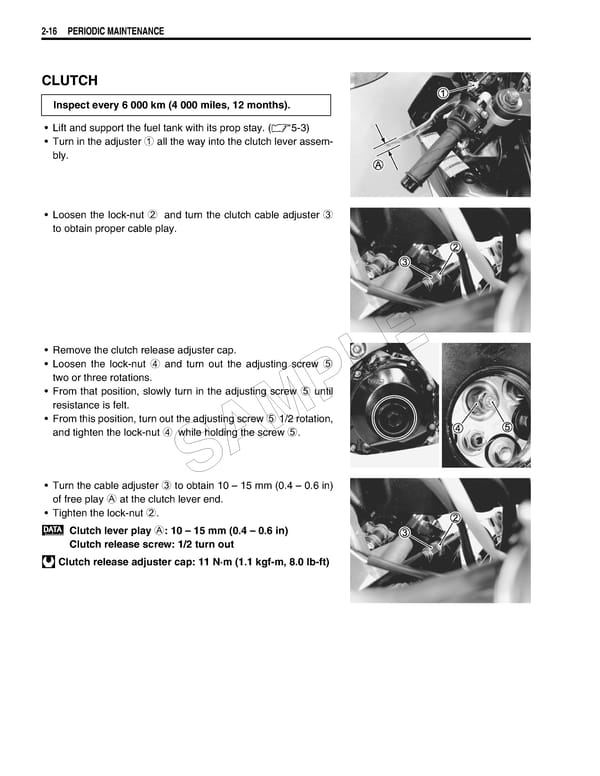

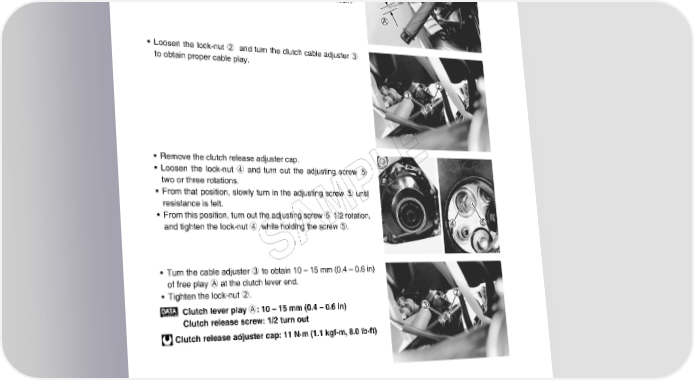

2-16 PERIODIC MAINTENANCE CLUTCH Inspect every 6 000 km (4 000 miles, 12 months). • Lift and support the fuel tank with its prop stay. (5-3) • Turn in the adjuster 1 all the way into the clutch lever assem- bly. • Loosen the lock-nut 2 and turn the clutch cable adjuster 3 to obtain proper cable play. • Remove the clutch release adjuster cap. E • Loosen the lock-nut 4 and turn out the adjusting screw 5 two or three rotations. L • From that position, slowly turn in the adjusting screw 5 until resistance is felt. P • From this position, turn out the adjusting screw 5 1/2 rotation, M and tighten the lock-nut 4 while holding the screw 5. A S • Turn the cable adjuster 3 to obtain 10 – 15 mm (0.4 – 0.6 in) of free play A at the clutch lever end. • Tighten the lock-nut 2. Clutch lever play A: 10 – 15 mm (0.4 – 0.6 in) Clutch release screw: 1/2 turn out Clutch release adjuster cap: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
