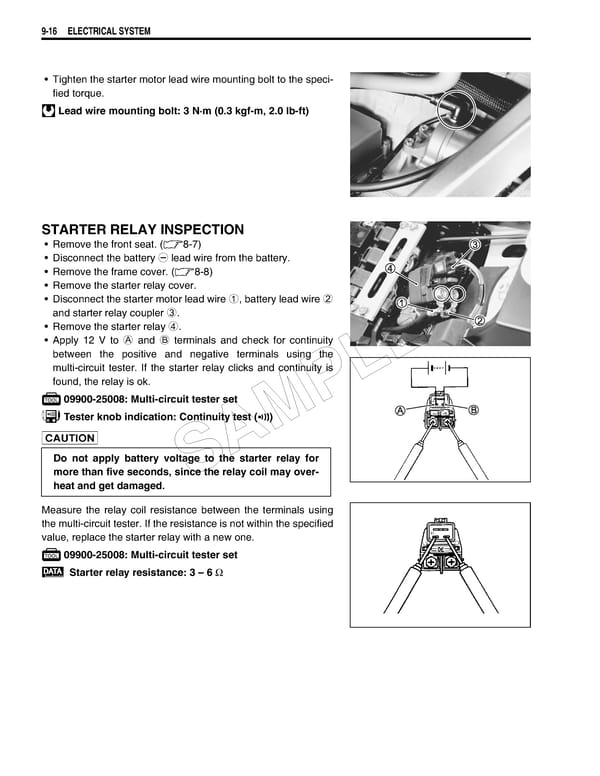

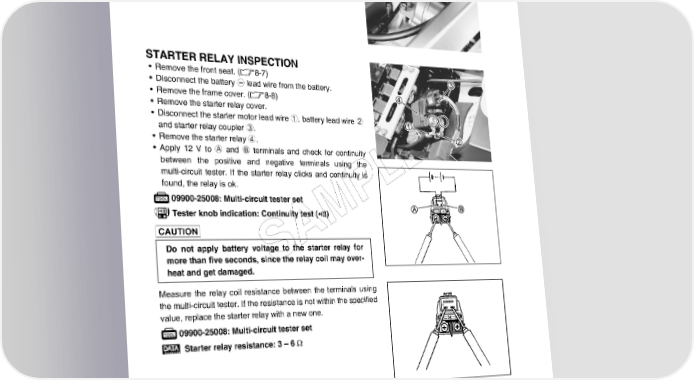

9-16 ELECTRICAL SYSTEM • Tighten the starter motor lead wire mounting bolt to the speci- fied torque. Lead wire mounting bolt: 3 N·m (0.3 kgf-m, 2.0 lb-ft) STARTER RELAY INSPECTION • Remove the front seat. (8-7) • Disconnect the battery - lead wire from the battery. • Remove the frame cover. (8-8) • Remove the starter relay cover. • Disconnect the starter motor lead wire 1, battery lead wire 2 and starter relay coupler 3. • Remove the starter relay 4. • Apply 12 V to A and B terminals and check for continuity between the positive and negative terminals using the E multi-circuit tester. If the starter relay clicks and continuity is L found, the relay is ok. 09900-25008: Multi-circuit tester set P Tester knob indication: Continuity test ()  M A Do not apply battery voltage to the starter relay for more than five seconds, since the relay coil may over- heat and get damaged. S Measure the relay coil resistance between the terminals using the multi-circuit tester. If the resistance is not within the specified value, replace the starter relay with a new one. 09900-25008: Multi-circuit tester set Starter relay resistance: 3 – 6 Ω
