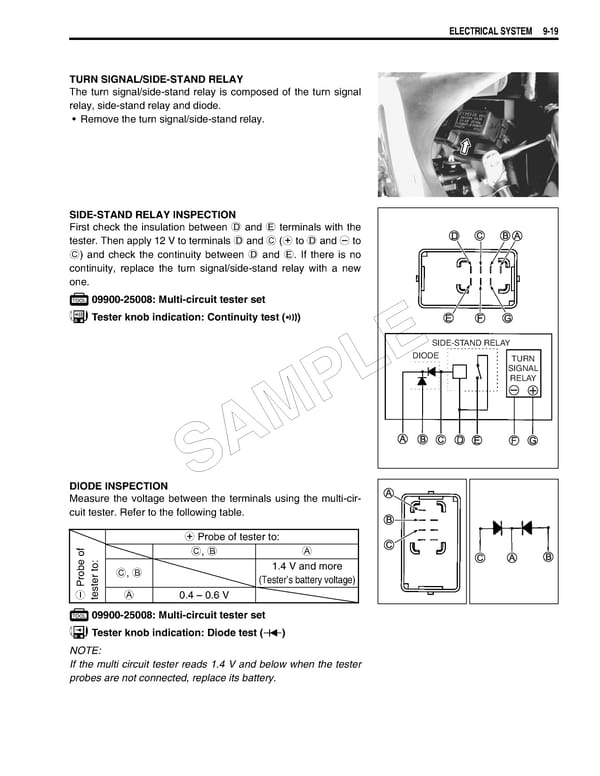

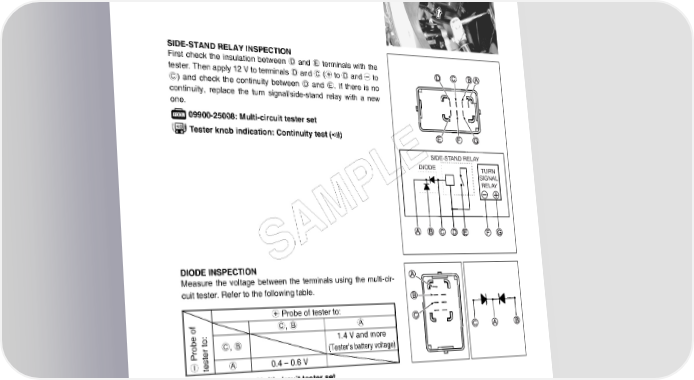

ELECTRICAL SYSTEM 9-19 TURN SIGNAL/SIDE-STAND RELAY The turn signal/side-stand relay is composed of the turn signal relay, side-stand relay and diode. • Remove the turn signal/side-stand relay. SIDE-STAND RELAY INSPECTION First check the insulation between D and E terminals with the tester. Then apply 12 V to terminals D and C (+ to D and - to C) and check the continuity between D and E. If there is no continuity, replace the turn signal/side-stand relay with a new one. 09900-25008: Multi-circuit tester set Tester knob indication: Continuity test () SIDE-STAND RELAY DIODE TURN E SIGNAL L RELAY P M A S DIODE INSPECTION Measure the voltage between the terminals using the multi-cir- cuit tester. Refer to the following table. + Probe of tester to: C, BA C, B 1.4 V and more Probe of (Tester’s battery voltage) - tester to:A 0.4 – 0.6 V 09900-25008: Multi-circuit tester set Tester knob indication: Diode test () NOTE: If the multi circuit tester reads 1.4 V and below when the tester probes are not connected, replace its battery.
