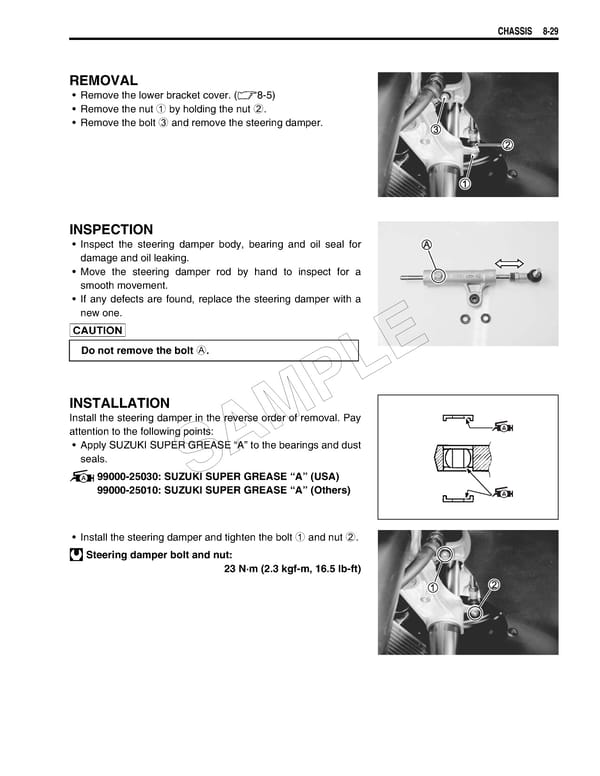

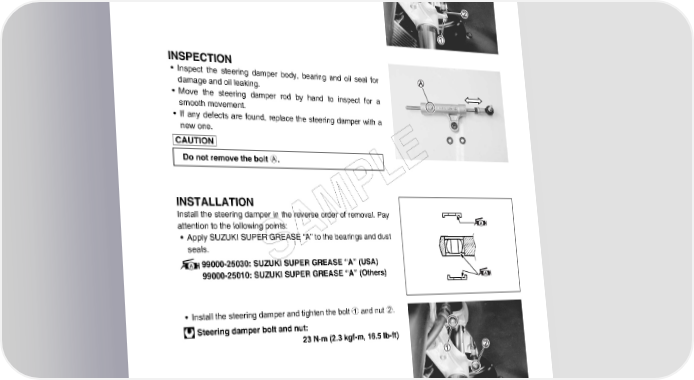

CHASSIS 8-29 REMOVAL • Remove the lower bracket cover. (8-5) • Remove the nut 1 by holding the nut 2. • Remove the bolt 3 and remove the steering damper. INSPECTION • Inspect the steering damper body, bearing and oil seal for damage and oil leaking. • Move the steering damper rod by hand to inspect for a smooth movement. • If any defects are found, replace the steering damper with a new one.  Do not remove the bolt A. E PL INSTALLATION Install the steering damper in the reverse order of removal. Pay attention to the following points: M • Apply SUZUKI SUPER GREASE “A” to the bearings and dust seals. SA 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others) • Install the steering damper and tighten the bolt 1 and nut 2. Steering damper bolt and nut: 23 N·m (2.3 kgf-m, 16.5 lb-ft)
