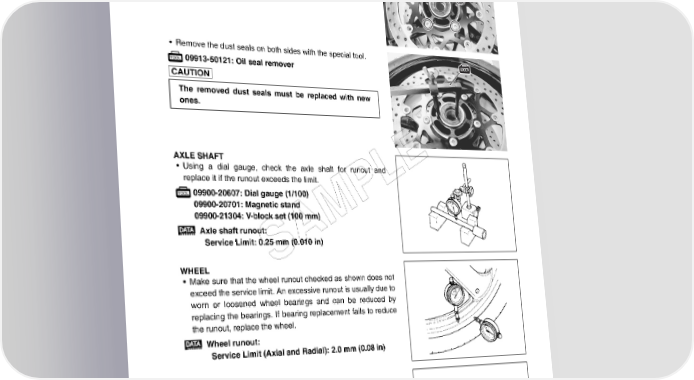

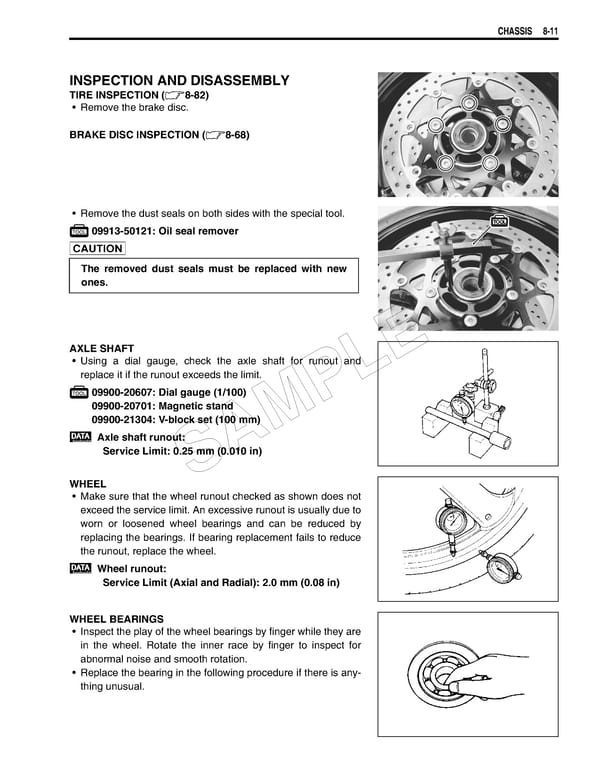

CHASSIS 8-11 INSPECTION AND DISASSEMBLY TIRE INSPECTION (8-82) • Remove the brake disc. BRAKE DISC INSPECTION (8-68) • Remove the dust seals on both sides with the special tool. 09913-50121: Oil seal remover  The removed dust seals must be replaced with new ones. AXLE SHAFT E • Using a dial gauge, check the axle shaft for runout and replace it if the runout exceeds the limit. L 09900-20607: Dial gauge (1/100) P 09900-20701: Magnetic stand 09900-21304: V-block set (100 mm) M Axle shaft runout: Service Limit: 0.25 mm (0.010 in) A WHEEL S • Make sure that the wheel runout checked as shown does not exceed the service limit. An excessive runout is usually due to worn or loosened wheel bearings and can be reduced by replacing the bearings. If bearing replacement fails to reduce the runout, replace the wheel. Wheel runout: Service Limit (Axial and Radial): 2.0 mm (0.08 in) WHEEL BEARINGS • Inspect the play of the wheel bearings by finger while they are in the wheel. Rotate the inner race by finger to inspect for abnormal noise and smooth rotation. • Replace the bearing in the following procedure if there is any- thing unusual.
