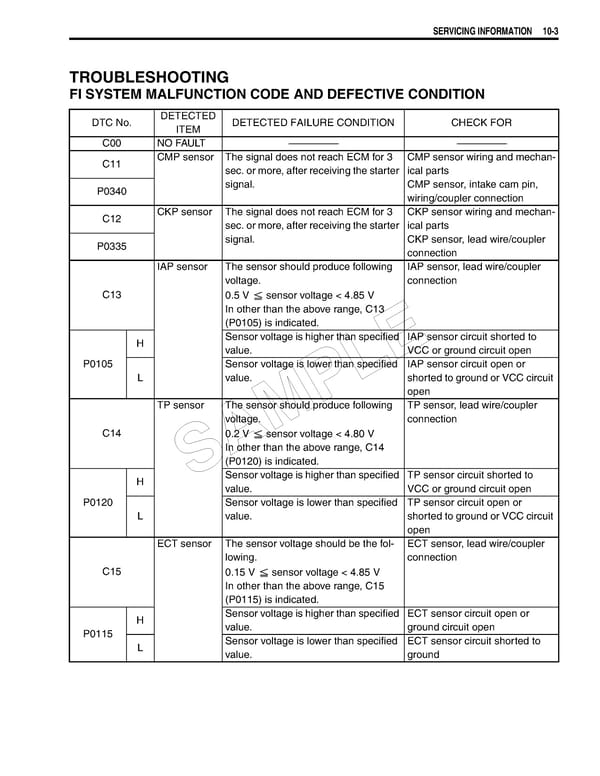

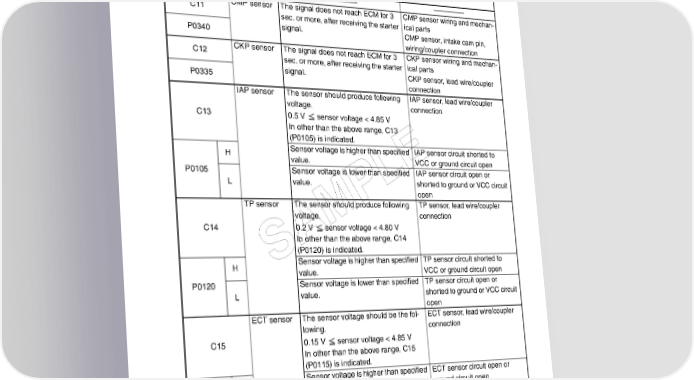

SERVICING INFORMATION 10-3 TROUBLESHOOTING FI SYSTEM MALFUNCTION CODE AND DEFECTIVE CONDITION DTC No. DETECTED DETECTED FAILURE CONDITION CHECK FOR ITEM C00 NO FAULT ––––––––––– ––––––––––– C11 CMP sensor The signal does not reach ECM for 3 CMP sensor wiring and mechan- sec. or more, after receiving the starter ical parts P0340 signal. CMP sensor, intake cam pin, wiring/coupler connection C12 CKP sensor The signal does not reach ECM for 3 CKP sensor wiring and mechan- sec. or more, after receiving the starter ical parts P0335 signal. CKP sensor, lead wire/coupler connection IAP sensor The sensor should produce following IAP sensor, lead wire/coupler voltage. connection C13 0.5 V sensor voltage < 4.85 V In other than the above range, C13 (P0105) is indicated. H Sensor voltage is higher than specified IAP sensor circuit shorted to value. VCC or ground circuit open E P0105 Sensor voltage is lower than specified IAP sensor circuit open or L value. Lshorted to ground or VCC circuit P open TP sensor The sensor should produce following TP sensor, lead wire/coupler voltage. M connection C14 0.2 V sensor voltage < 4.80 V In other than the above range, C14 A (P0120) is indicated. S H Sensor voltage is higher than specified TP sensor circuit shorted to value. VCC or ground circuit open P0120 Sensor voltage is lower than specified TP sensor circuit open or L value. shorted to ground or VCC circuit open ECT sensor The sensor voltage should be the fol- ECT sensor, lead wire/coupler lowing. connection C15 0.15 V sensor voltage < 4.85 V In other than the above range, C15 (P0115) is indicated. H Sensor voltage is higher than specified ECT sensor circuit open or P0115 value. ground circuit open L Sensor voltage is lower than specified ECT sensor circuit shorted to value. ground
