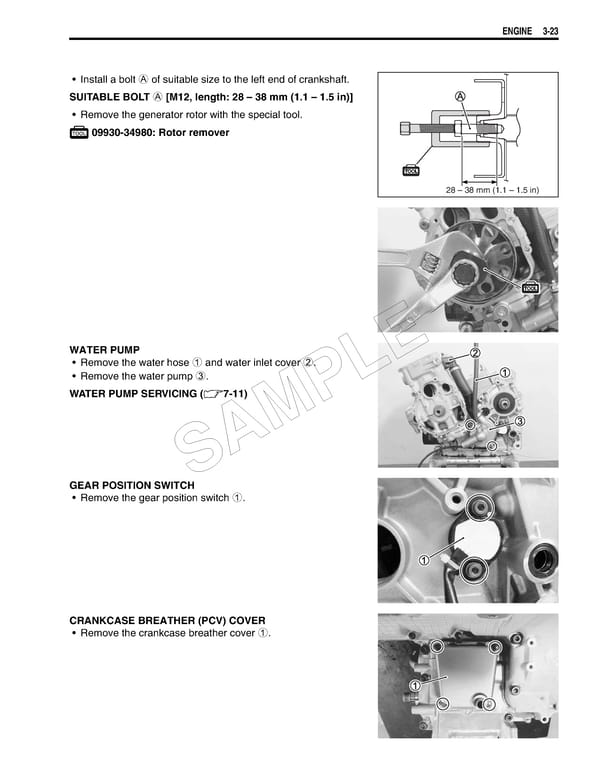

ENGINE 3-23 • Install a bolt A of suitable size to the left end of crankshaft. SUITABLE BOLT A [M12, length: 28 – 38 mm (1.1 – 1.5 in)] • Remove the generator rotor with the special tool. 09930-34980: Rotor remover 28 – 38 mm (1.1 – 1.5 in) WATER PUMP E • Remove the water hose 1 and water inlet cover 2. • Remove the water pump 3. L WATER PUMP SERVICING (7-11) P SAM GEAR POSITION SWITCH • Remove the gear position switch 1. CRANKCASE BREATHER (PCV) COVER • Remove the crankcase breather cover 1.
