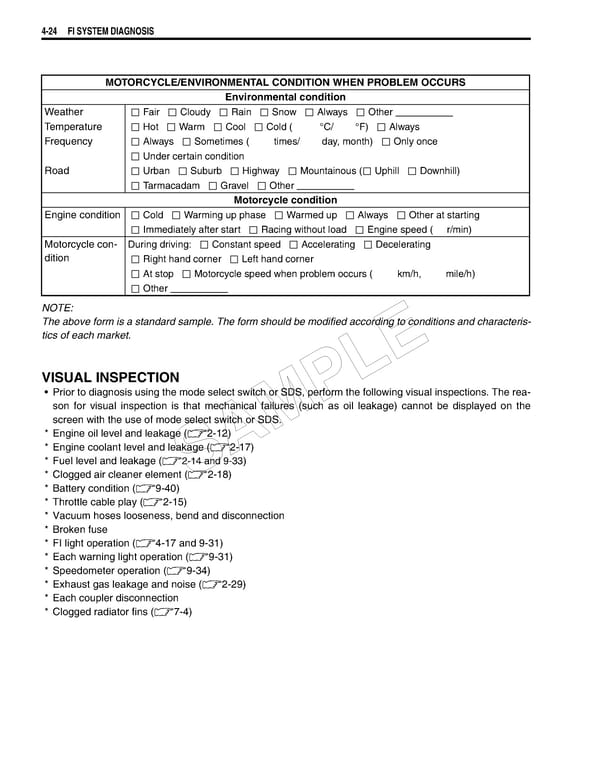

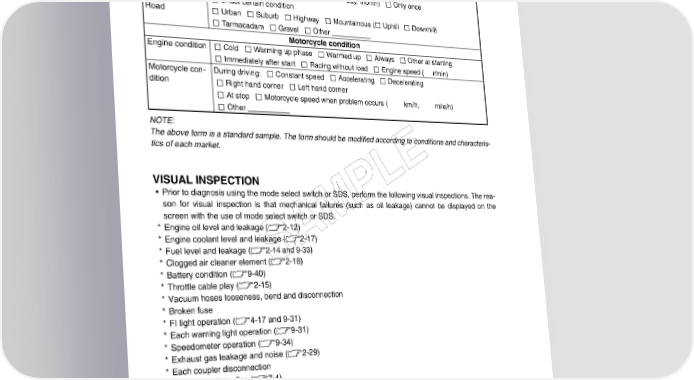

4-24 FI SYSTEM DIAGNOSIS MOTORCYCLE/ENVIRONMENTAL CONDITION WHEN PROBLEM OCCURS Environmental condition Weather Fair Cloudy Rain Snow Always Other Temperature Hot Warm Cool Cold ( °C/ °F) Always Frequency Always Sometimes ( times/ day, month) Only once Under certain condition Road Urban Suburb Highway Mountainous ( Uphill Downhill) Tarmacadam Gravel Other Motorcycle condition Engine condition Cold Warming up phase Warmed up Always Other at starting Immediately after start Racing without load Engine speed ( r/min) Motorcycle con- During driving: Constant speed Accelerating Decelerating dition Right hand corner Left hand corner At stop Motorcycle speed when problem occurs ( km/h, mile/h) Other NOTE: The above form is a standard sample. The form should be modified according to conditions and characteris- tics of each market. E VISUAL INSPECTION L • Prior to diagnosis using the mode select switch or SDS, perform the following visual inspections. The rea- P son for visual inspection is that mechanical failures (such as oil leakage) cannot be displayed on the screen with the use of mode select switch or SDS. * Engine oil level and leakage (2-12) M * Engine coolant level and leakage (2-17) * Fuel level and leakage ( A 2-14 and 9-33) * Clogged air cleaner element (2-18) S * Battery condition (9-40) * Throttle cable play (2-15) * Vacuum hoses looseness, bend and disconnection * Broken fuse * FI light operation (4-17 and 9-31) * Each warning light operation (9-31) * Speedometer operation (9-34) * Exhaust gas leakage and noise (2-29) * Each coupler disconnection * Clogged radiator fins (7-4)
