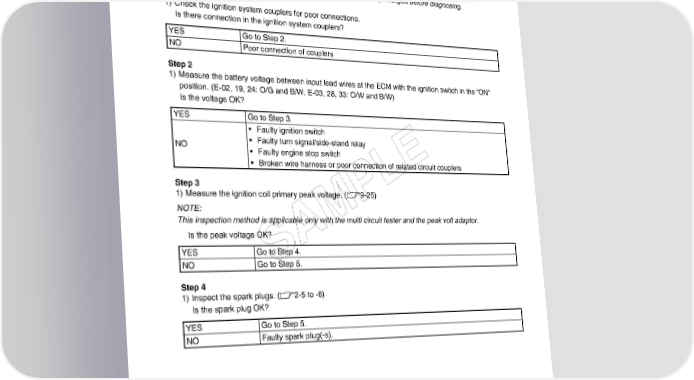

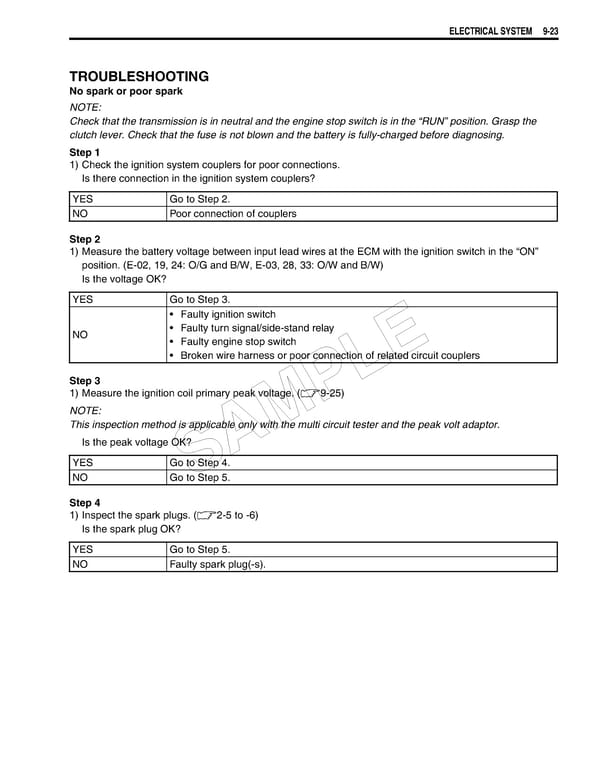

ELECTRICAL SYSTEM 9-23 TROUBLESHOOTING No spark or poor spark NOTE: Check that the transmission is in neutral and the engine stop switch is in the “RUN” position. Grasp the clutch lever. Check that the fuse is not blown and the battery is fully-charged before diagnosing. Step 1 1) Check the ignition system couplers for poor connections. Is there connection in the ignition system couplers? YES Go to Step 2. NO Poor connection of couplers Step 2 1) Measure the battery voltage between input lead wires at the ECM with the ignition switch in the “ON” position. (E-02, 19, 24: O/G and B/W, E-03, 28, 33: O/W and B/W) Is the voltage OK? YES Go to Step 3. • Faulty ignition switch NO • Faulty turn signal/side-stand relay • Faulty engine stop switch • Broken wire harness or poor connection of related circuit couplers E Step 3 L 1) Measure the ignition coil primary peak voltage. (9-25) NOTE: P This inspection method is applicable only with the multi circuit tester and the peak volt adaptor. M Is the peak voltage OK? A YES Go to Step 4. S NO Go to Step 5. Step 4 1) Inspect the spark plugs. (2-5 to -6) Is the spark plug OK? YES Go to Step 5. NO Faulty spark plug(-s).
