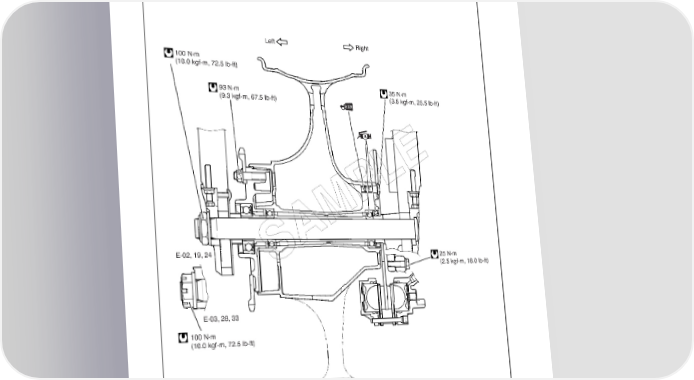

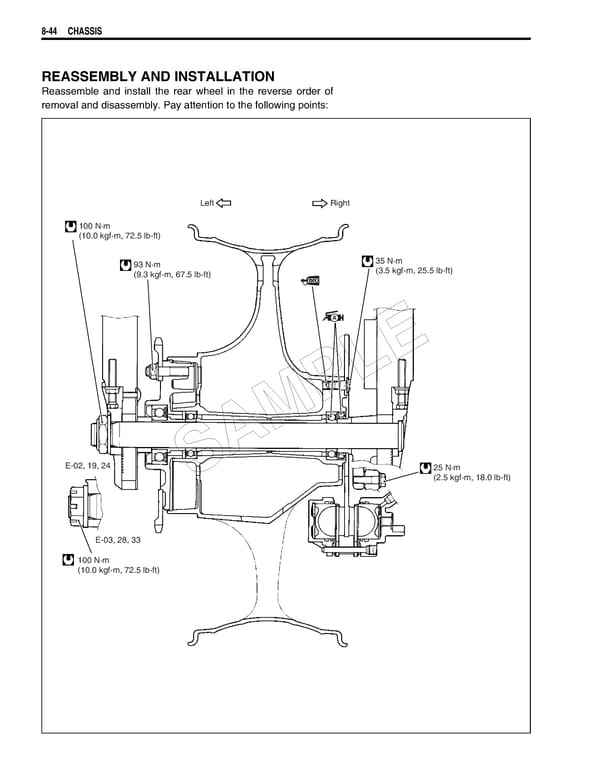

8-44 CHASSIS REASSEMBLY AND INSTALLATION Reassemble and install the rear wheel in the reverse order of removal and disassembly. Pay attention to the following points: Left Right 100 N·m (10.0 kgf-m, 72.5 lb-ft) 93 N·m 35 N·m (9.3 kgf-m, 67.5 lb-ft) (3.5 kgf-m, 25.5 lb-ft) E PL AM E-02, 19, 24 S 25 N·m (2.5 kgf-m, 18.0 lb-ft) E-03, 28, 33 100 N·m (10.0 kgf-m, 72.5 lb-ft)
