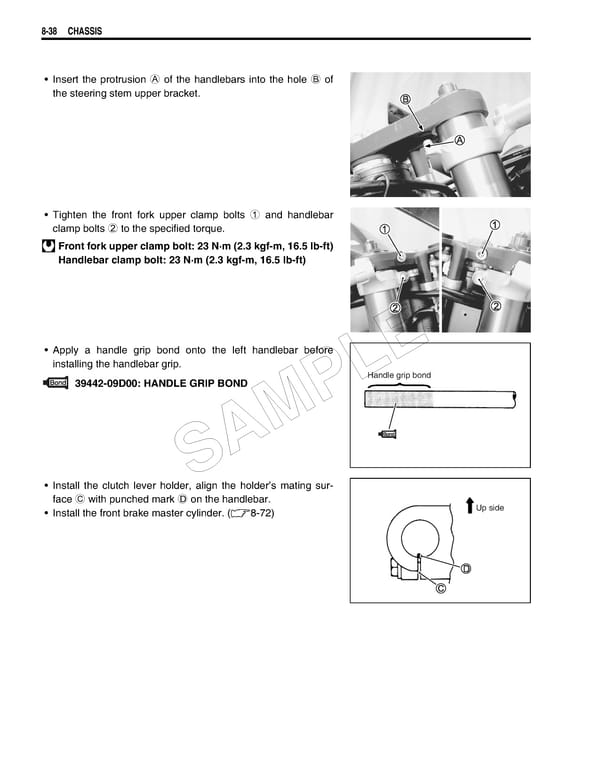

8-38 CHASSIS • Insert the protrusion A of the handlebars into the hole B of the steering stem upper bracket. • Tighten the front fork upper clamp bolts 1 and handlebar clamp bolts 2 to the specified torque. Front fork upper clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft) Handlebar clamp bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft) • Apply a handle grip bond onto the left handlebar before E installing the handlebar grip. Handle grip bond 39442-09D00: HANDLE GRIP BOND PL SAM • Install the clutch lever holder, align the holder’s mating sur- face C with punched mark D on the handlebar. • Install the front brake master cylinder. (8-72) Up side
