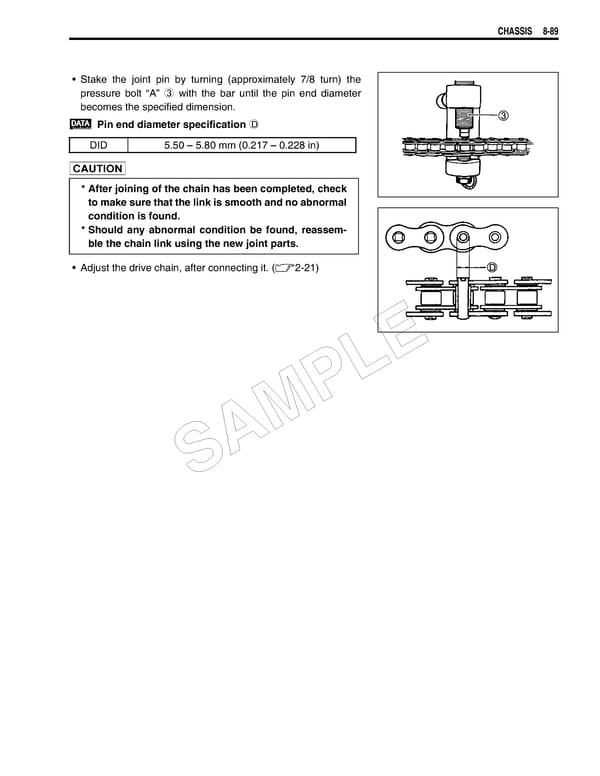

CHASSIS 8-89 • Stake the joint pin by turning (approximately 7/8 turn) the pressure bolt “A” 3 with the bar until the pin end diameter becomes the specified dimension. Pin end diameter specification D DID 5.50 – 5.80 mm (0.217 – 0.228 in)  * After joining of the chain has been completed, check to make sure that the link is smooth and no abnormal condition is found. * Should any abnormal condition be found, reassem- ble the chain link using the new joint parts. • Adjust the drive chain, after connecting it. (2-21) E L P M A S
