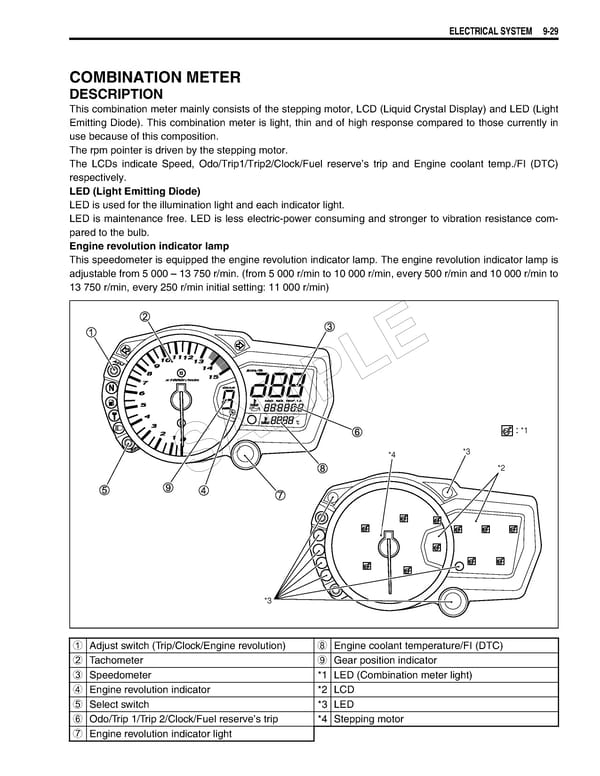

ELECTRICAL SYSTEM 9-29 COMBINATION METER DESCRIPTION This combination meter mainly consists of the stepping motor, LCD (Liquid Crystal Display) and LED (Light Emitting Diode). This combination meter is light, thin and of high response compared to those currently in use because of this composition. The rpm pointer is driven by the stepping motor. The LCDs indicate Speed, Odo/Trip1/Trip2/Clock/Fuel reserve’s trip and Engine coolant temp./FI (DTC) respectively. LED (Light Emitting Diode) LED is used for the illumination light and each indicator light. LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance com- pared to the bulb. Engine revolution indicator lamp This speedometer is equipped the engine revolution indicator lamp. The engine revolution indicator lamp is adjustable from 5 000 – 13 750 r/min. (from 5 000 r/min to 10 000 r/min, every 500 r/min and 10 000 r/min to 13750 r/min, every 250 r/min initial setting: 11 000 r/min) E L P M : *1 A *4 *3 S *2 *3 1 Adjust switch (Trip/Clock/Engine revolution) 8 Engine coolant temperature/FI (DTC) 2 Tachometer 9 Gear position indicator 3 Speedometer *1 LED (Combination meter light) 4 Engine revolution indicator *2 LCD 5 Select switch *3 LED 6 Odo/Trip 1/Trip 2/Clock/Fuel reserve’s trip *4 Stepping motor 7 Engine revolution indicator light
