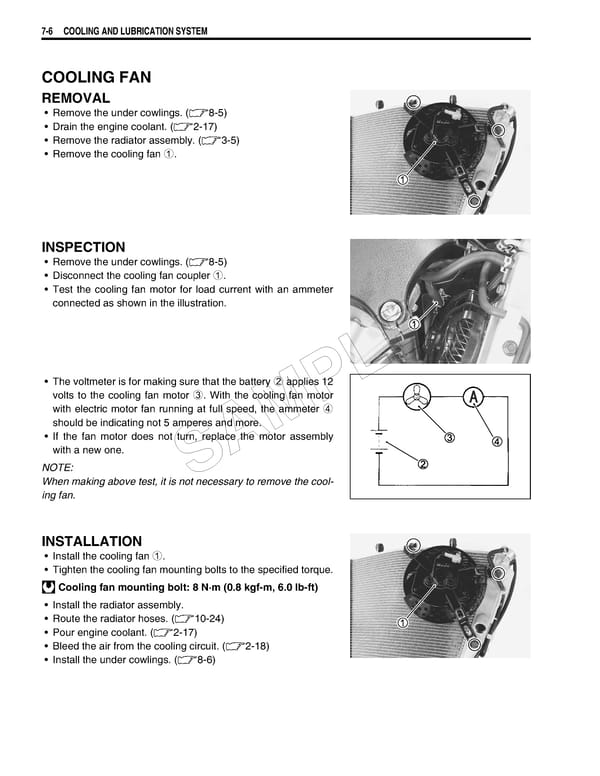

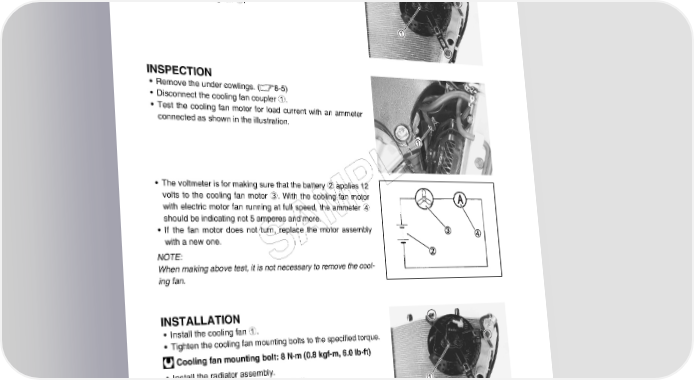

7-6 COOLING AND LUBRICATION SYSTEM COOLING FAN REMOVAL • Remove the under cowlings. (8-5) • Drain the engine coolant. (2-17) • Remove the radiator assembly. (3-5) • Remove the cooling fan 1. INSPECTION • Remove the under cowlings. (8-5) • Disconnect the cooling fan coupler 1. • Test the cooling fan motor for load current with an ammeter connected as shown in the illustration. E • The voltmeter is for making sure that the battery 2 applies 12 L volts to the cooling fan motor 3. With the cooling fan motor P with electric motor fan running at full speed, the ammeter 4 should be indicating not 5 amperes and more. M • If the fan motor does not turn, replace the motor assembly with a new one. A NOTE: S When making above test, it is not necessary to remove the cool- ing fan. INSTALLATION • Install the cooling fan 1. • Tighten the cooling fan mounting bolts to the specified torque. Cooling fan mounting bolt: 8 N·m (0.8 kgf-m, 6.0 lb-ft) • Install the radiator assembly. • Route the radiator hoses. (10-24) • Pour engine coolant. (2-17) • Bleed the air from the cooling circuit. (2-18) • Install the under cowlings. (8-6)
