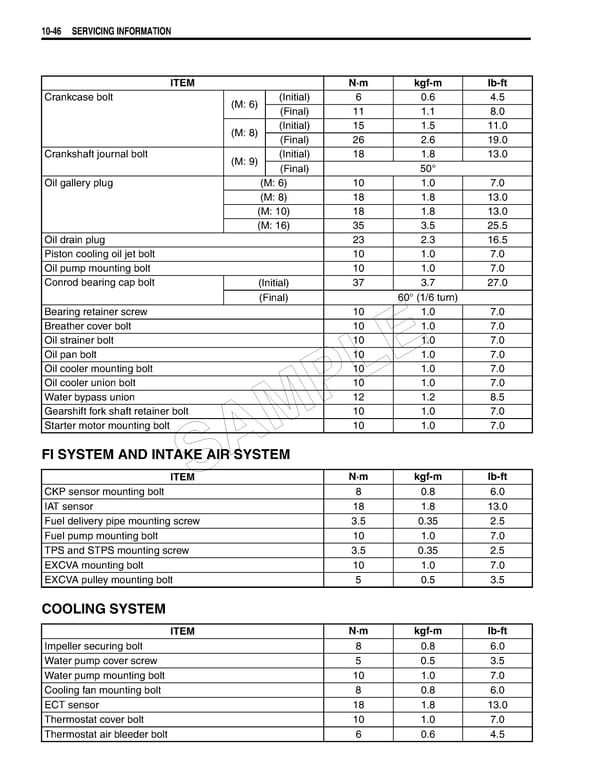

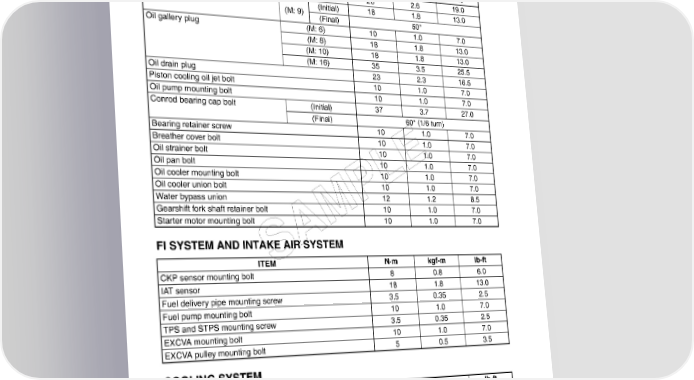

10-46 SERVICING INFORMATION ITEM N·m kgf-m lb-ft Crankcase bolt (M: 6) (Initial) 6 0.6 4.5 (Final) 11 1.1 8.0 (M: 8) (Initial) 15 1.5 11.0 (Final) 26 2.6 19.0 Crankshaft journal bolt (M: 9) (Initial) 18 1.8 13.0 (Final) 50° Oil gallery plug (M: 6) 10 1.0 7.0 (M: 8) 18 1.8 13.0 (M: 10) 18 1.8 13.0 (M: 16) 35 3.5 25.5 Oil drain plug 23 2.3 16.5 Piston cooling oil jet bolt 10 1.0 7.0 Oil pump mounting bolt 10 1.0 7.0 Conrod bearing cap bolt (Initial) 37 3.7 27.0 (Final) 60° (1/6 turn) Bearing retainer screw 10 1.0 7.0 Breather cover bolt 10 1.0 7.0 Oil strainer bolt 10 1.0 7.0 Oil pan bolt 10 1.0 7.0 E Oil cooler mounting bolt 10 1.0 7.0 L Oil cooler union bolt 10 1.0 7.0 Water bypass union 12 1.2 8.5 P Gearshift fork shaft retainer bolt 10 1.0 7.0 Starter motor mounting bolt M 10 1.0 7.0 A FI SYSTEM AND INTAKE AIR SYSTEM S N·m kgf-m lb-ft ITEM CKP sensor mounting bolt 8 0.8 6.0 IAT sensor 18 1.8 13.0 Fuel delivery pipe mounting screw 3.5 0.35 2.5 Fuel pump mounting bolt 10 1.0 7.0 TPS and STPS mounting screw 3.5 0.35 2.5 EXCVA mounting bolt 10 1.0 7.0 EXCVA pulley mounting bolt 5 0.5 3.5 COOLING SYSTEM ITEM N·m kgf-m lb-ft Impeller securing bolt 8 0.8 6.0 Water pump cover screw 5 0.5 3.5 Water pump mounting bolt 10 1.0 7.0 Cooling fan mounting bolt 8 0.8 6.0 ECT sensor 18 1.8 13.0 Thermostat cover bolt 10 1.0 7.0 Thermostat air bleeder bolt 6 0.6 4.5
