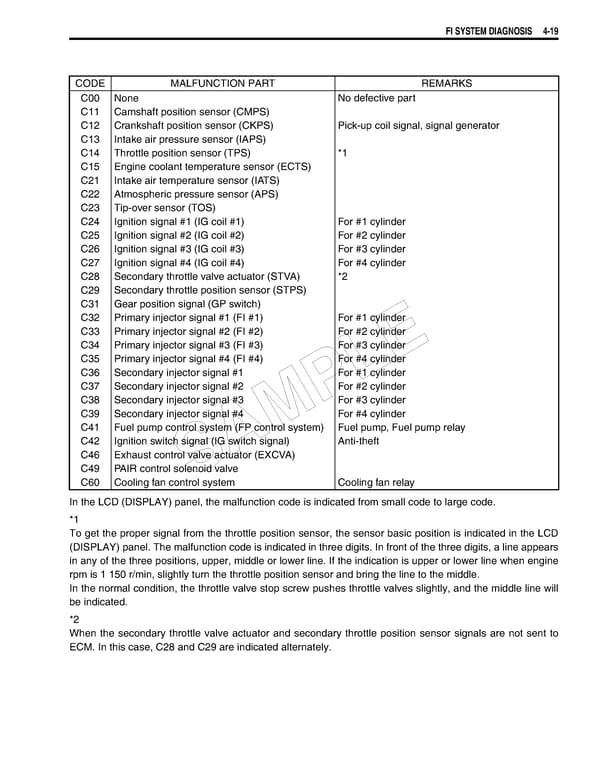

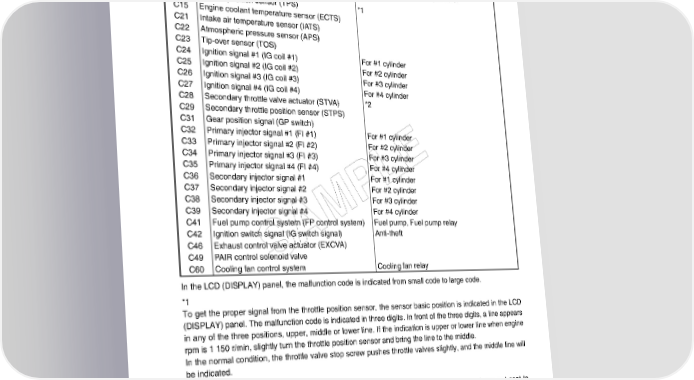

FI SYSTEM DIAGNOSIS 4-19 CODE MALFUNCTION PART REMARKS C00 None No defective part C11 Camshaft position sensor (CMPS) C12 Crankshaft position sensor (CKPS) Pick-up coil signal, signal generator C13 Intake air pressure sensor (IAPS) C14 Throttle position sensor (TPS) *1 C15 Engine coolant temperature sensor (ECTS) C21 Intake air temperature sensor (IATS) C22 Atmospheric pressure sensor (APS) C23 Tip-over sensor (TOS) C24 Ignition signal #1 (IG coil #1) For #1 cylinder C25 Ignition signal #2 (IG coil #2) For #2 cylinder C26 Ignition signal #3 (IG coil #3) For #3 cylinder C27 Ignition signal #4 (IG coil #4) For #4 cylinder C28 Secondary throttle valve actuator (STVA) *2 C29 Secondary throttle position sensor (STPS) C31 Gear position signal (GP switch) C32 Primary injector signal #1 (FI #1) For #1 cylinder C33 Primary injector signal #2 (FI #2) For #2 cylinder C34 Primary injector signal #3 (FI #3) For #3 cylinder E C35 Primary injector signal #4 (FI #4) For #4 cylinder C36 Secondary injector signal #1 For #1 cylinder L C37 Secondary injector signal #2 For #2 cylinder C38 Secondary injector signal #3 For #3 cylinder P C39 Secondary injector signal #4 For #4 cylinder C41 Fuel pump control system (FP control system) Fuel pump, Fuel pump relay M C42 Ignition switch signal (IG switch signal) Anti-theft A C46 Exhaust control valve actuator (EXCVA) C49 PAIR control solenoid valve S Cooling fan relay C60 Cooling fan control system In the LCD (DISPLAY) panel, the malfunction code is indicated from small code to large code. *1 To get the proper signal from the throttle position sensor, the sensor basic position is indicated in the LCD (DISPLAY) panel. The malfunction code is indicated in three digits. In front of the three digits, a line appears in any of the three positions, upper, middle or lower line. If the indication is upper or lower line when engine rpm is 1 150 r/min, slightly turn the throttle position sensor and bring the line to the middle. In the normal condition, the throttle valve stop screw pushes throttle valves slightly, and the middle line will be indicated. *2 When the secondary throttle valve actuator and secondary throttle position sensor signals are not sent to ECM. In this case, C28 and C29 are indicated alternately.
