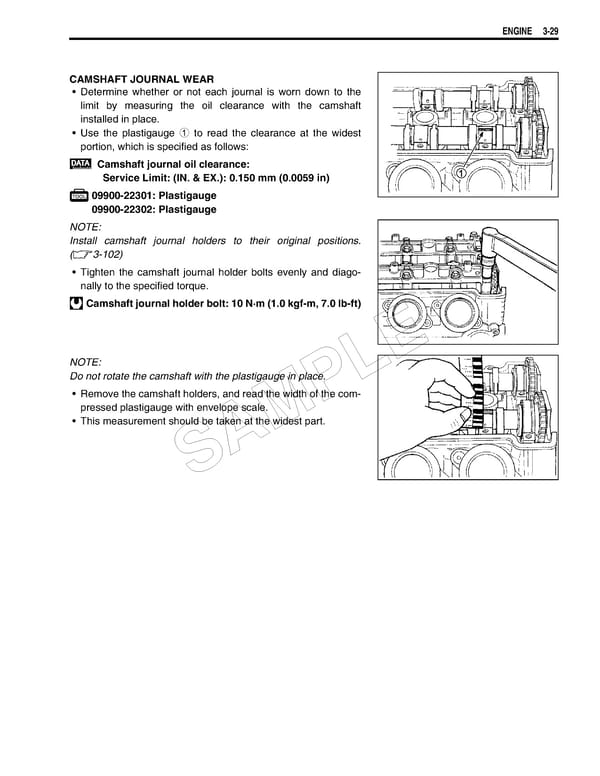

ENGINE 3-29 CAMSHAFT JOURNAL WEAR • Determine whether or not each journal is worn down to the limit by measuring the oil clearance with the camshaft installed in place. • Use the plastigauge 1 to read the clearance at the widest portion, which is specified as follows: Camshaft journal oil clearance: Service Limit: (IN. & EX.): 0.150 mm (0.0059 in) 09900-22301: Plastigauge 09900-22302: Plastigauge NOTE: Install camshaft journal holders to their original positions. (3-102) • Tighten the camshaft journal holder bolts evenly and diago- nally to the specified torque. Camshaft journal holder bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) NOTE: E Do not rotate the camshaft with the plastigauge in place. L • Remove the camshaft holders, and read the width of the com- pressed plastigauge with envelope scale. P • This measurement should be taken at the widest part. M A S
