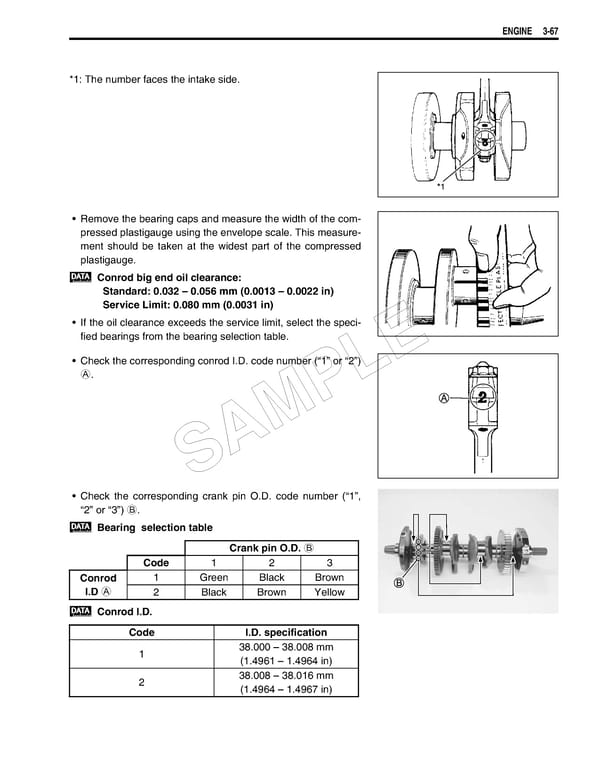

ENGINE 3-67 *1: The number faces the intake side.
• Remove the bearing caps and measure the width of the com- pressed plastigauge using the envelope scale. This measure- ment should be taken at the widest part of the compressed plastigauge. Conrod big end oil clearance: Standard: 0.032 – 0.056 mm (0.0013 – 0.0022 in) Service Limit: 0.080 mm (0.0031 in) • If the oil clearance exceeds the service limit, select the speci- fied bearings from the bearing selection table. E • Check the corresponding conrod I.D. code number (“1” or “2”) A. L P M A S • Check the corresponding crank pin O.D. code number (“1”, “2” or “3”) B. Bearing selection table Crank pin O.D. B Code 123 Conrod 1 Green Black Brown I.D A 2 Black Brown Yellow Conrod I.D. Code I.D. specification 1 38.000 – 38.008 mm (1.4961 – 1.4964 in) 2 38.008 – 38.016 mm (1.4964 – 1.4967 in)
