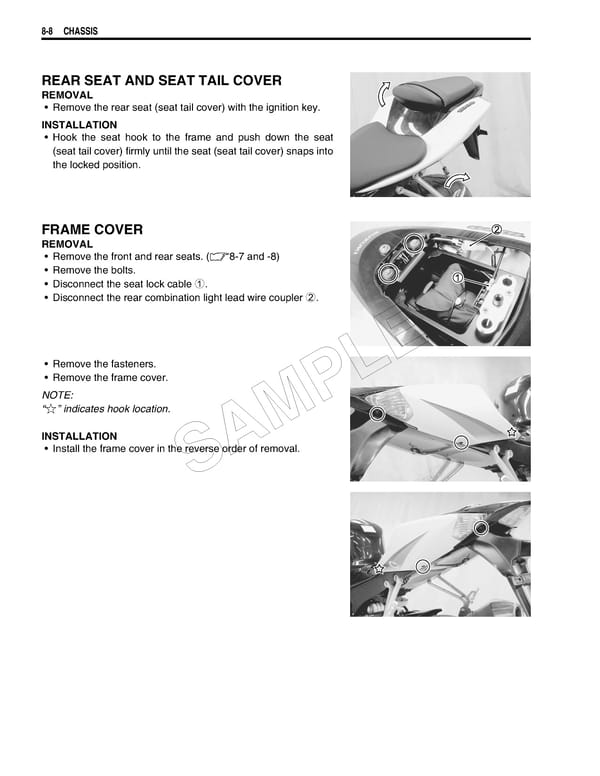

8-8 CHASSIS REAR SEAT AND SEAT TAIL COVER REMOVAL • Remove the rear seat (seat tail cover) with the ignition key. INSTALLATION • Hook the seat hook to the frame and push down the seat (seat tail cover) firmly until the seat (seat tail cover) snaps into the locked position. FRAME COVER REMOVAL • Remove the front and rear seats. (8-7 and -8) • Remove the bolts. • Disconnect the seat lock cable 1. • Disconnect the rear combination light lead wire coupler 2. • Remove the fasteners. E • Remove the frame cover. L NOTE: P “” indicates hook location. M INSTALLATION • Install the frame cover in the reverse order of removal. A S
