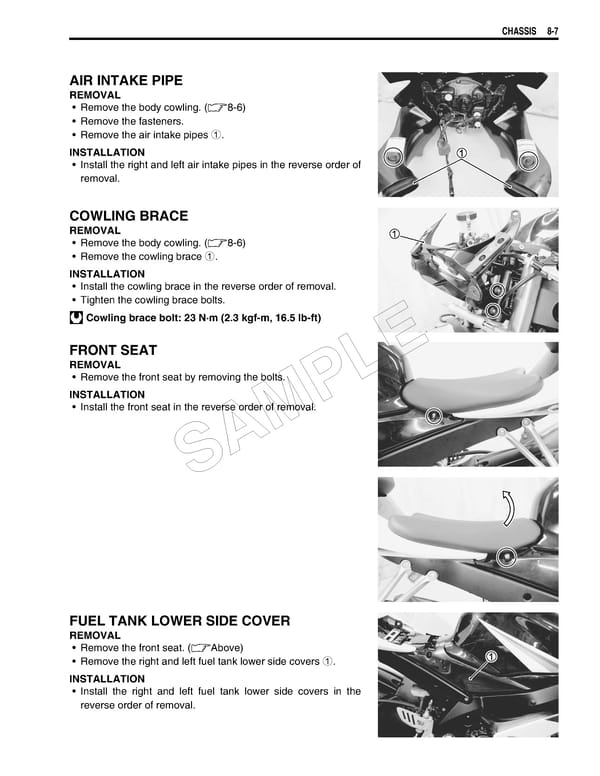

CHASSIS 8-7 AIR INTAKE PIPE REMOVAL • Remove the body cowling. (8-6) • Remove the fasteners. • Remove the air intake pipes 1. INSTALLATION • Install the right and left air intake pipes in the reverse order of removal. COWLING BRACE REMOVAL • Remove the body cowling. (8-6) • Remove the cowling brace 1. INSTALLATION • Install the cowling brace in the reverse order of removal. • Tighten the cowling brace bolts. Cowling brace bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft) FRONT SEAT E REMOVAL • Remove the front seat by removing the bolts. L INSTALLATION P • Install the front seat in the reverse order of removal. M A S FUEL TANK LOWER SIDE COVER REMOVAL • Remove the front seat. (Above) • Remove the right and left fuel tank lower side covers 1. INSTALLATION • Install the right and left fuel tank lower side covers in the reverse order of removal.
