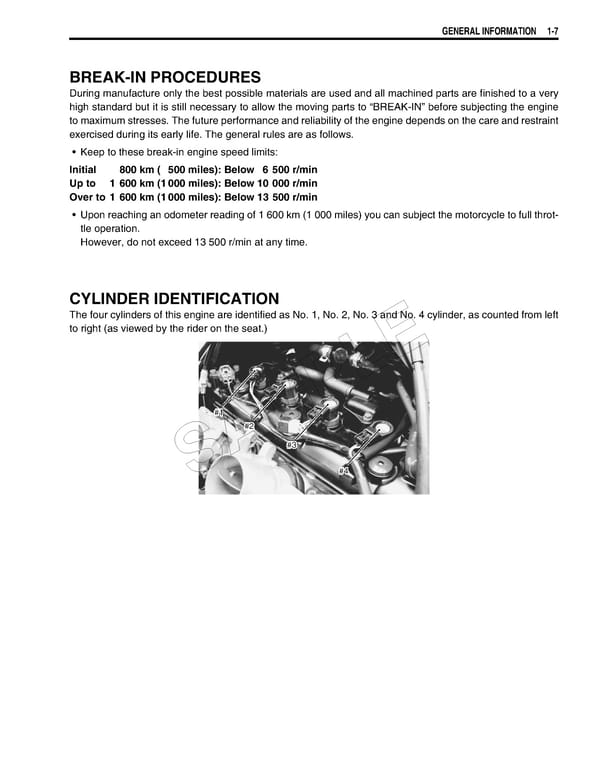

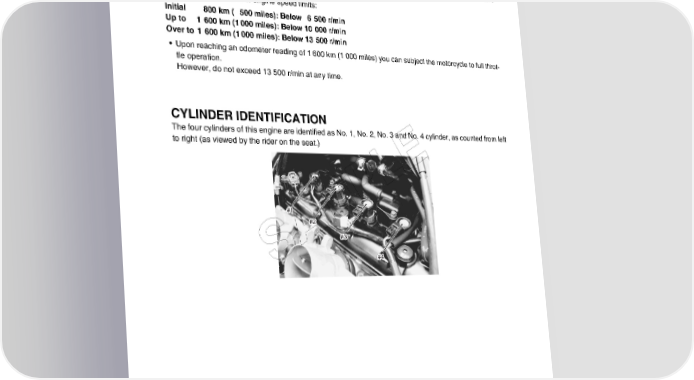

GENERAL INFORMATION 1-7 BREAK-IN PROCEDURES During manufacture only the best possible materials are used and all machined parts are finished to a very high standard but it is still necessary to allow the moving parts to “BREAK-IN” before subjecting the engine to maximum stresses. The future performance and reliability of the engine depends on the care and restraint exercised during its early life. The general rules are as follows. • Keep to these break-in engine speed limits: Initial 800 km ( 500 miles): Below 6 500 r/min Up to 1 600 km (1000 miles): Below 10 000 r/min Over to 1 600 km (1000 miles): Below 13 500 r/min • Upon reaching an odometer reading of 1 600 km (1 000 miles) you can subject the motorcycle to full throt- tle operation. However, do not exceed 13 500 r/min at any time. CYLINDER IDENTIFICATION The four cylinders of this engine are identified as No. 1, No. 2, No. 3 and No. 4 cylinder, as counted from left to right (as viewed by the rider on the seat.) E PL #1 #2 M A#3 S #4
