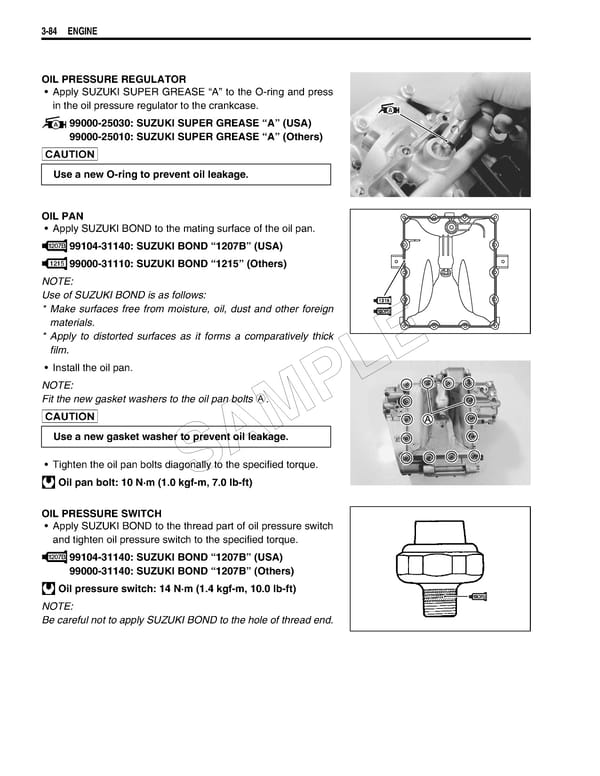

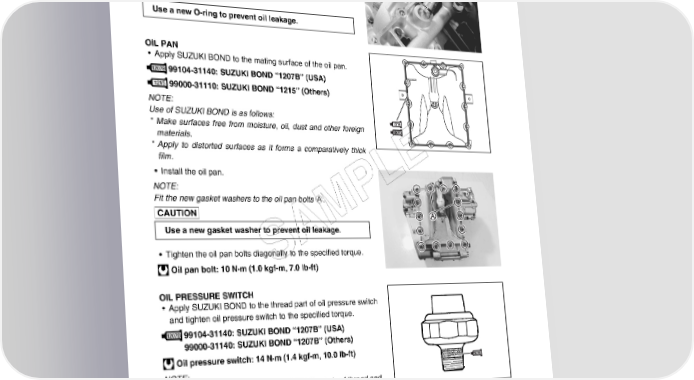

3-84 ENGINE OIL PRESSURE REGULATOR • Apply SUZUKI SUPER GREASE “A” to the O-ring and press in the oil pressure regulator to the crankcase. 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others)  Use a new O-ring to prevent oil leakage. OIL PAN • Apply SUZUKI BOND to the mating surface of the oil pan. 99104-31140: SUZUKI BOND “1207B” (USA) 99000-31110: SUZUKI BOND “1215” (Others) NOTE: Use of SUZUKI BOND is as follows: * Make surfaces free from moisture, oil, dust and other foreign materials. * Apply to distorted surfaces as it forms a comparatively thick film. E • Install the oil pan. L NOTE: Fit the new gasket washers to the oil pan bolts A. P  M Use a new gasket washer to prevent oil leakage. A • Tighten the oil pan bolts diagonally to the specified torque. S Oil pan bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft) OIL PRESSURE SWITCH • Apply SUZUKI BOND to the thread part of oil pressure switch and tighten oil pressure switch to the specified torque. 99104-31140: SUZUKI BOND “1207B” (USA) 99000-31140: SUZUKI BOND “1207B” (Others) Oil pressure switch: 14 N·m (1.4 kgf-m, 10.0 lb-ft) NOTE: Be careful not to apply SUZUKI BOND to the hole of thread end.
