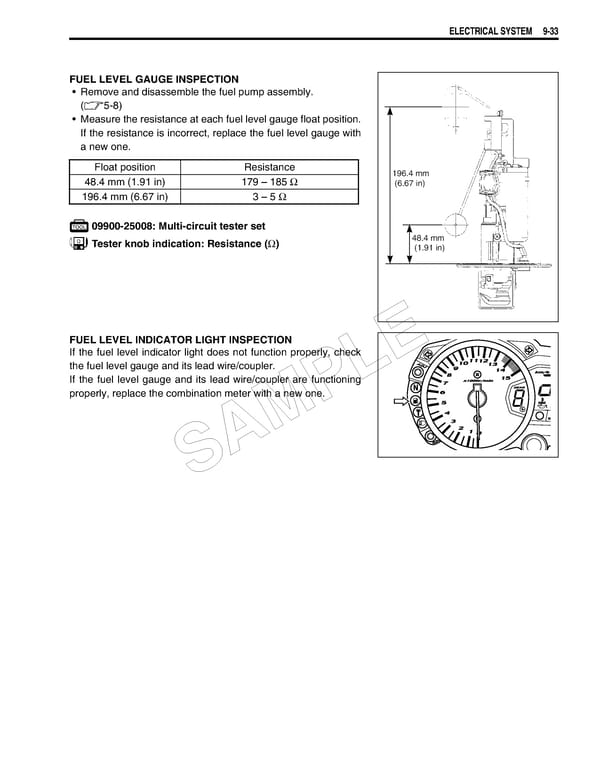

ELECTRICAL SYSTEM 9-33 FUEL LEVEL GAUGE INSPECTION • Remove and disassemble the fuel pump assembly. (5-8) • Measure the resistance at each fuel level gauge float position. If the resistance is incorrect, replace the fuel level gauge with a new one. Float position Resistance 196.4 mm 48.4 mm (1.91 in) 179 – 185 Ω (6.67 in) 196.4 mm (6.67 in) 3 – 5 Ω 09900-25008: Multi-circuit tester set Tester knob indication: Resistance (Ω) 48.4 mm (1.91 in) FUEL LEVEL INDICATOR LIGHT INSPECTION If the fuel level indicator light does not function properly, check E the fuel level gauge and its lead wire/coupler. L If the fuel level gauge and its lead wire/coupler are functioning properly, replace the combination meter with a new one. P SAM
