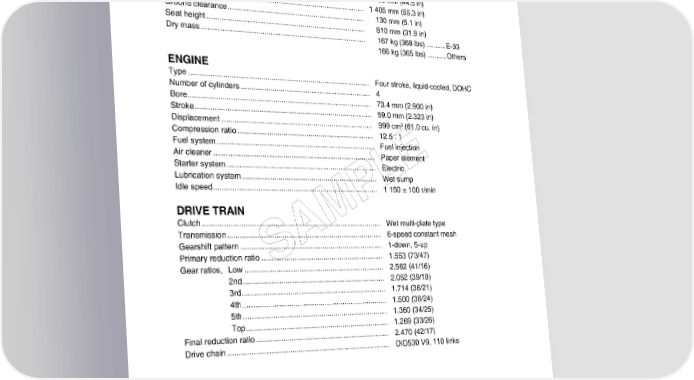

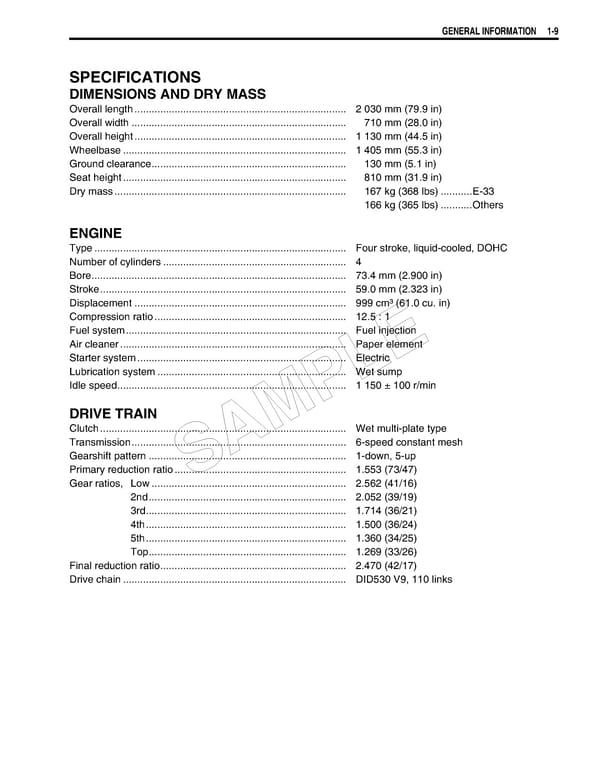

GENERAL INFORMATION 1-9 SPECIFICATIONS DIMENSIONS AND DRY MASS Overall length.......................................................................... 2 030 mm (79.9 in) Overall width ........................................................................... 710 mm (28.0 in) Overall height.......................................................................... 1 130 mm (44.5 in) Wheelbase.............................................................................. 1 405 mm (55.3 in) Ground clearance.................................................................... 130 mm (5.1 in) Seat height.............................................................................. 810 mm (31.9 in) Dry mass................................................................................. 167 kg (368 lbs) ...........E-33 166 kg (365 lbs) ...........Others ENGINE Type........................................................................................ Four stroke, liquid-cooled, DOHC Number of cylinders................................................................ 4 Bore......................................................................................... 73.4 mm (2.900 in) Stroke...................................................................................... 59.0 mm (2.323 in) Displacement .......................................................................... 999 cm³ (61.0 cu. in) Compression ratio................................................................... 12.5 : 1 Fuel system............................................................................. Fuel injection Air cleaner............................................................................... Paper element Starter system......................................................................... Electric E Lubrication system.................................................................. Wet sump L Idle speed................................................................................ 1 150 ± 100 r/min DRIVE TRAIN P M Clutch...................................................................................... Wet multi-plate type Transmission........................................................................... 6-speed constant mesh A Gearshift pattern ..................................................................... 1-down, 5-up Primary reduction ratio............................................................ 1.553 (73/47) S Gear ratios, Low.................................................................... 2.562 (41/16) 2nd..................................................................... 2.052 (39/19) 3rd...................................................................... 1.714 (36/21) 4th...................................................................... 1.500 (36/24) 5th...................................................................... 1.360 (34/25) Top..................................................................... 1.269 (33/26) Final reduction ratio................................................................. 2.470 (42/17) Drive chain.............................................................................. DID530 V9, 110 links
