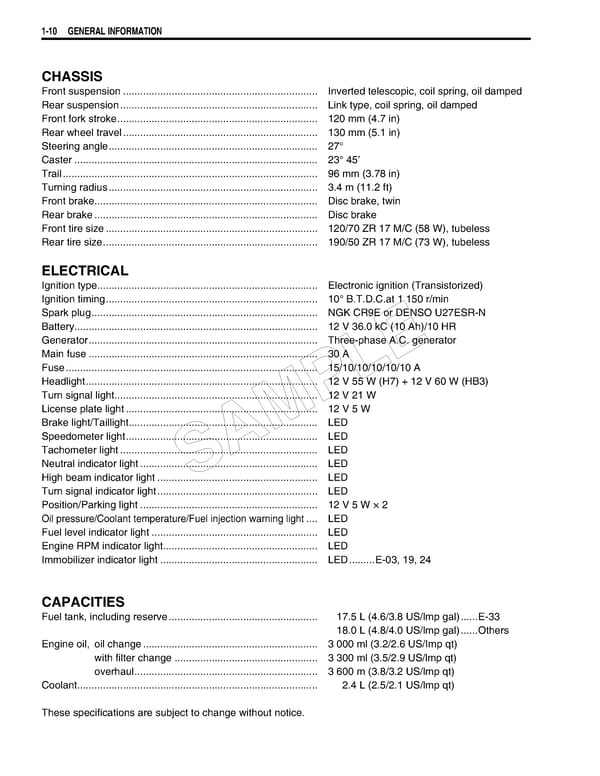

1-10 GENERAL INFORMATION CHASSIS Front suspension.................................................................... Inverted telescopic, coil spring, oil damped Rear suspension..................................................................... Link type, coil spring, oil damped Front fork stroke...................................................................... 120 mm (4.7 in) Rear wheel travel.................................................................... 130 mm (5.1 in) Steering angle......................................................................... 27° Caster..................................................................................... 23° 45’ Trail......................................................................................... 96 mm (3.78 in) Turning radius......................................................................... 3.4 m (11.2 ft) Front brake.............................................................................. Disc brake, twin Rear brake.............................................................................. Disc brake Front tire size.......................................................................... 120/70 ZR 17 M/C (58 W), tubeless Rear tire size........................................................................... 190/50 ZR 17 M/C (73 W), tubeless ELECTRICAL Ignition type............................................................................. Electronic ignition (Transistorized) Ignition timing.......................................................................... 10° B.T.D.C.at 1 150 r/min Spark plug............................................................................... NGK CR9E or DENSO U27ESR-N Battery..................................................................................... 12 V 36.0 kC (10 Ah)/10 HR Generator................................................................................ Three-phase A.C. generator Main fuse................................................................................ 30 A E Fuse........................................................................................ 15/10/10/10/10/10 A L Headlight................................................................................. 12 V 55 W (H7) + 12 V 60 W (HB3) Turn signal light....................................................................... 12 V 21 W P License plate light................................................................... 12 V 5 W Brake light/Taillight.................................................................. LED M Speedometer light................................................................... LED Tachometer light..................................................................... LED A Neutral indicator light.............................................................. LED S High beam indicator light ........................................................ LED Turn signal indicator light........................................................ LED Position/Parking light .............................................................. 12 V 5 W × 2 Oil pressure/Coolant temperature/Fuel injection warning light .... LED Fuel level indicator light .......................................................... LED Engine RPM indicator light...................................................... LED Immobilizer indicator light ....................................................... LED.........E-03, 19, 24 CAPACITIES Fuel tank, including reserve.................................................... 17.5 L (4.6/3.8 US/lmp gal)......E-33 18.0 L (4.8/4.0 US/lmp gal)......Others Engine oil, oil change............................................................. 3 000 ml (3.2/2.6 US/Imp qt) with filter change .................................................. 3 300 ml (3.5/2.9 US/lmp qt) overhaul................................................................ 3 600 m (3.8/3.2 US/lmp qt) Coolant.................................................................................... 2.4 L (2.5/2.1 US/lmp qt) These specifications are subject to change without notice.
