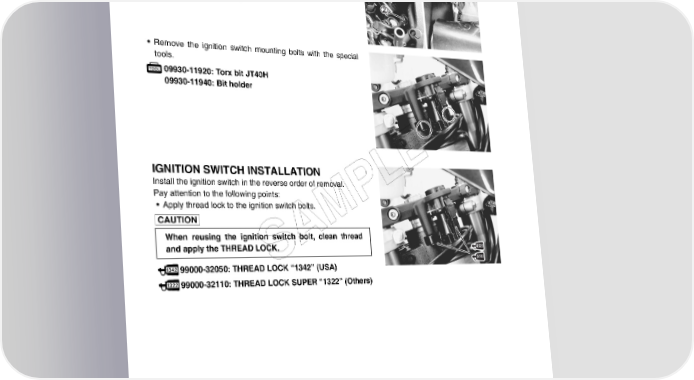

9-38 ELECTRICAL SYSTEM IGNITION SWITCH REMOVAL • Remove the air cleaner box. (5-13) • Disconnect the ignition switch lead wire coupler (Green) 1. • Disconnect the immobilizer lead wire coupler (Black) 2. (For E-02, 19, 24) • Remove the cable guide 3. • Remove the ignition switch mounting bolts with the special tools. 09930-11920: Torx bit JT40H 09930-11940: Bit holder IGNITION SWITCH INSTALLATION E Install the ignition switch in the reverse order of removal. L Pay attention to the following points: P • Apply thread lock to the ignition switch bolts.  M When reusing the ignition switch bolt, clean thread and apply the THREAD LOCK. A S 99000-32050: THREAD LOCK “1342” (USA) 99000-32110: THREAD LOCK SUPER “1322” (Others)
