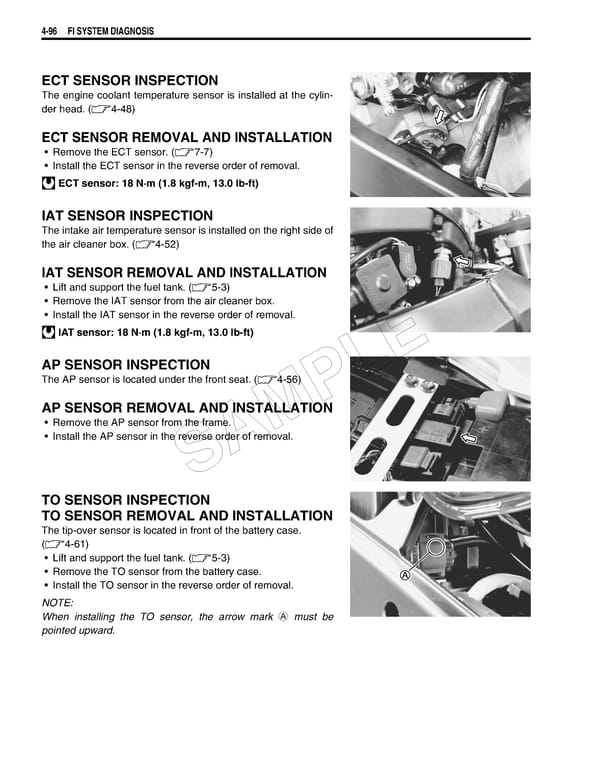

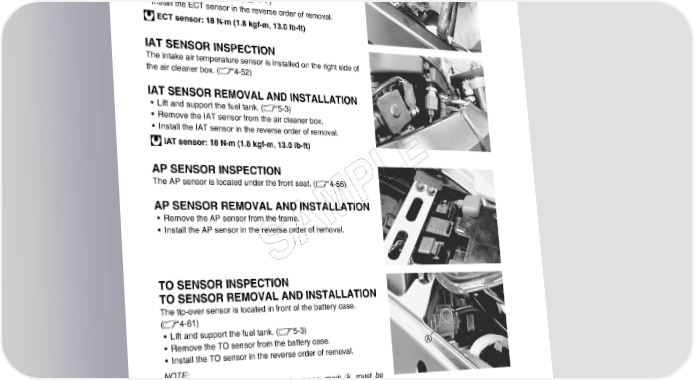

4-96 FI SYSTEM DIAGNOSIS ECT SENSOR INSPECTION The engine coolant temperature sensor is installed at the cylin- der head. (4-48) ECT SENSOR REMOVAL AND INSTALLATION • Remove the ECT sensor. (7-7) • Install the ECT sensor in the reverse order of removal. ECT sensor: 18 N·m (1.8 kgf-m, 13.0 lb-ft) IAT SENSOR INSPECTION The intake air temperature sensor is installed on the right side of the air cleaner box. (4-52) IAT SENSOR REMOVAL AND INSTALLATION • Lift and support the fuel tank. (5-3) • Remove the IAT sensor from the air cleaner box. • Install the IAT sensor in the reverse order of removal. IAT sensor: 18 N·m (1.8 kgf-m, 13.0 lb-ft) E AP SENSOR INSPECTION L The AP sensor is located under the front seat. (4-56) P AP SENSOR REMOVAL AND INSTALLATION • Remove the AP sensor from the frame. M • Install the AP sensor in the reverse order of removal. A S TO SENSOR INSPECTION TO SENSOR REMOVAL AND INSTALLATION The tip-over sensor is located in front of the battery case. (4-61) • Lift and support the fuel tank. (5-3) • Remove the TO sensor from the battery case. • Install the TO sensor in the reverse order of removal. NOTE: When installing the TO sensor, the arrow mark A must be pointed upward.
