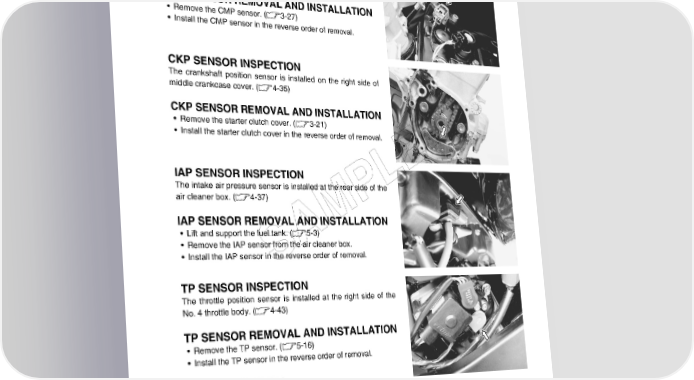

FI SYSTEM DIAGNOSIS 4-95 SENSORS CMP SENSOR INSPECTION The camshaft position sensor is installed on the cylinder head cover. (4-33) CMP SENSOR REMOVAL AND INSTALLATION • Remove the CMP sensor. (3-27) • Install the CMP sensor in the reverse order of removal. CKP SENSOR INSPECTION The crankshaft position sensor is installed on the right side of middle crankcase cover. (4-35) CKP SENSOR REMOVAL AND INSTALLATION • Remove the starter clutch cover. (3-21) • Install the starter clutch cover in the reverse order of removal. E IAP SENSOR INSPECTION L The intake air pressure sensor is installed at the rear side of the air cleaner box. (4-37) P IAP SENSOR REMOVAL AND INSTALLATION • Lift and support the fuel tank. (5-3) M A • Remove the IAP sensor from the air cleaner box. • Install the IAP sensor in the reverse order of removal. S TP SENSOR INSPECTION The throttle position sensor is installed at the right side of the No. 4 throttle body. (4-43) TP SENSOR REMOVAL AND INSTALLATION • Remove the TP sensor. (5-16) • Install the TP sensor in the reverse order of removal. TPS ADJUSTMENT • Adjust the TP sensor. (4-20)
