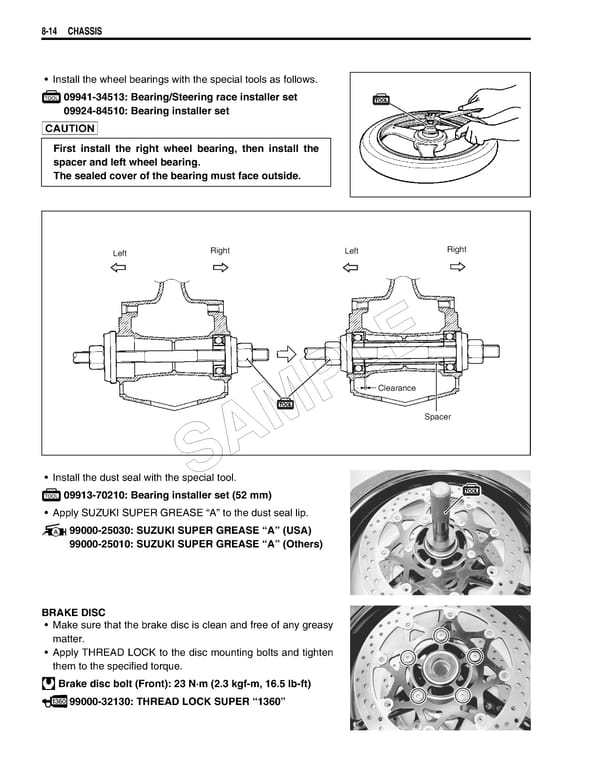

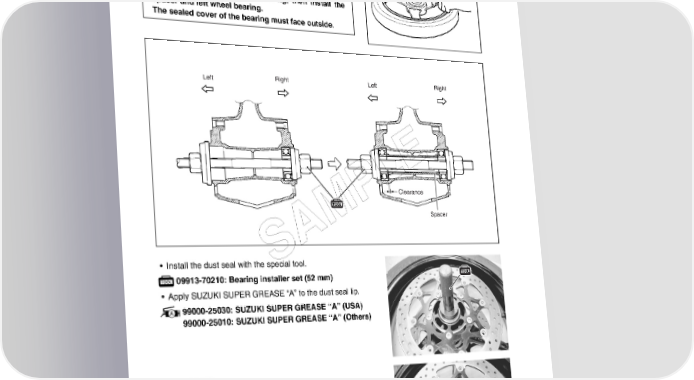

8-14 CHASSIS • Install the wheel bearings with the special tools as follows. 09941-34513: Bearing/Steering race installer set 09924-84510: Bearing installer set  First install the right wheel bearing, then install the spacer and left wheel bearing. The sealed cover of the bearing must face outside. Left Right Left Right E L P Clearance AM Spacer S • Install the dust seal with the special tool. 09913-70210: Bearing installer set (52 mm) • Apply SUZUKI SUPER GREASE “A” to the dust seal lip. 99000-25030: SUZUKI SUPER GREASE “A” (USA) 99000-25010: SUZUKI SUPER GREASE “A” (Others) BRAKE DISC • Make sure that the brake disc is clean and free of any greasy matter. • Apply THREAD LOCK to the disc mounting bolts and tighten them to the specified torque. Brake disc bolt (Front): 23 N·m (2.3 kgf-m, 16.5 lb-ft) 99000-32130: THREAD LOCK SUPER “1360”
