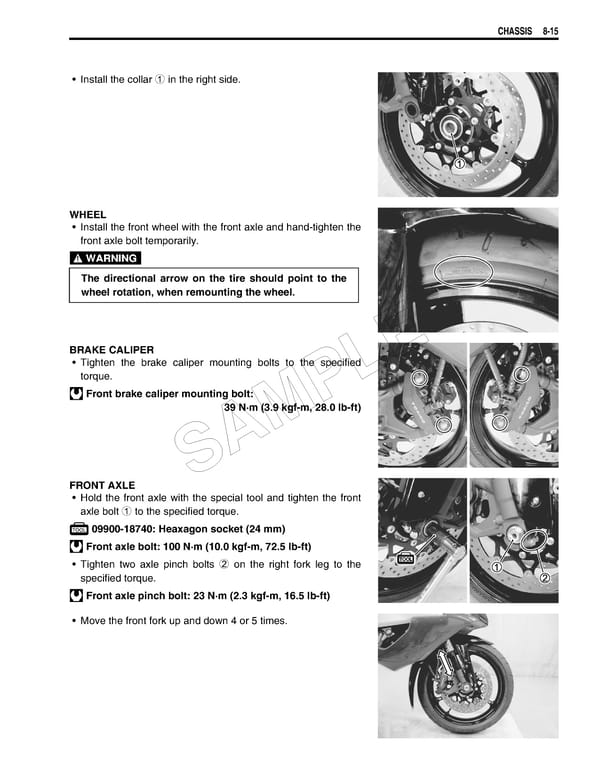

CHASSIS 8-15 • Install the collar 1 in the right side. WHEEL • Install the front wheel with the front axle and hand-tighten the front axle bolt temporarily.  The directional arrow on the tire should point to the wheel rotation, when remounting the wheel. BRAKE CALIPER E • Tighten the brake caliper mounting bolts to the specified torque. L Front brake caliper mounting bolt: P 39 N·m (3.9 kgf-m, 28.0 lb-ft) M A FRONT AXLE S • Hold the front axle with the special tool and tighten the front axle bolt 1 to the specified torque. 09900-18740: Heaxagon socket (24 mm) Front axle bolt: 100 N·m (10.0 kgf-m, 72.5 lb-ft) • Tighten two axle pinch bolts 2 on the right fork leg to the specified torque. Front axle pinch bolt: 23 N·m (2.3 kgf-m, 16.5 lb-ft) • Move the front fork up and down 4 or 5 times.
