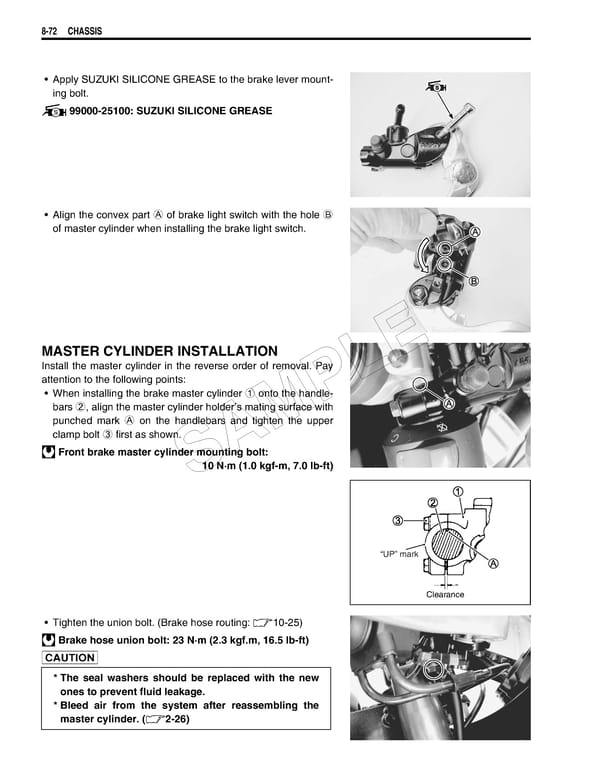

8-72 CHASSIS • Apply SUZUKI SILICONE GREASE to the brake lever mount- ing bolt. 99000-25100: SUZUKI SILICONE GREASE • Align the convex part A of brake light switch with the hole B of master cylinder when installing the brake light switch. MASTER CYLINDER INSTALLATION E Install the master cylinder in the reverse order of removal. Pay L attention to the following points: • When installing the brake master cylinder 1 onto the handle- P bars 2, align the master cylinder holder’s mating surface with punched mark A on the handlebars and tighten the upper clamp bolt 3 first as shown. M Front brake master cylinder mounting bolt: A 10 N·m (1.0 kgf-m, 7.0 lb-ft) S “UP” mark Clearance • Tighten the union bolt. (Brake hose routing: 10-25) Brake hose union bolt: 23 N·m (2.3 kgf.m, 16.5 lb-ft)  * The seal washers should be replaced with the new ones to prevent fluid leakage. * Bleed air from the system after reassembling the master cylinder. (2-26)
