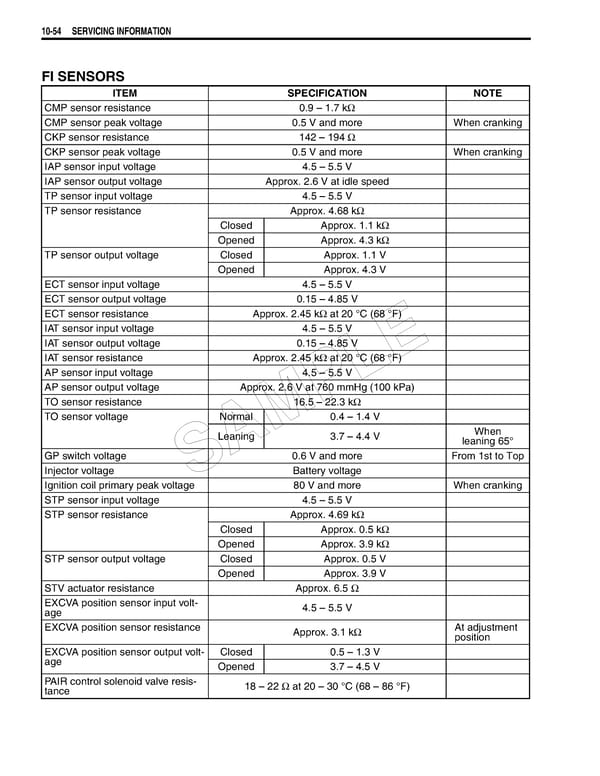

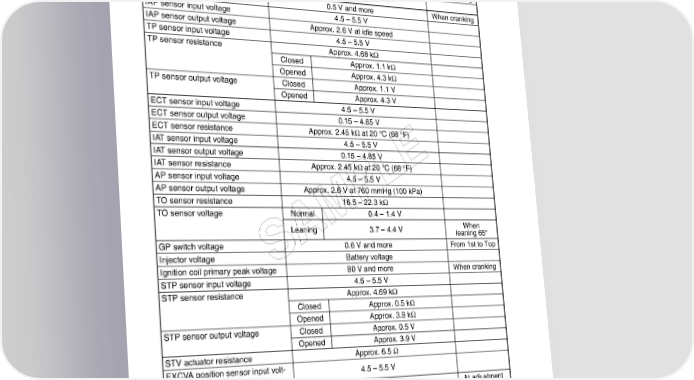

10-54 SERVICING INFORMATION FI SENSORS ITEM SPECIFICATION NOTE CMP sensor resistance 0.9 – 1.7 kΩ CMP sensor peak voltage 0.5 V and more When cranking CKP sensor resistance 142 – 194 Ω CKP sensor peak voltage 0.5 V and more When cranking IAP sensor input voltage 4.5 – 5.5 V IAP sensor output voltage Approx. 2.6 V at idle speed TP sensor input voltage 4.5 – 5.5 V TP sensor resistance Approx. 4.68 kΩ Closed Approx. 1.1 kΩ Opened Approx. 4.3 kΩ TP sensor output voltage Closed Approx. 1.1 V Opened Approx. 4.3 V ECT sensor input voltage 4.5 – 5.5 V ECT sensor output voltage 0.15 – 4.85 V ECT sensor resistance Approx. 2.45 kΩ at 20 °C (68 °F) IAT sensor input voltage 4.5 – 5.5 V IAT sensor output voltage 0.15 – 4.85 V IAT sensor resistance Approx. 2.45 kΩ at 20 °C (68 °F) E AP sensor input voltage 4.5 – 5.5 V L AP sensor output voltage Approx. 2.6 V at 760 mmHg (100 kPa) P TO sensor resistance 16.5 – 22.3 kΩ TO sensor voltage Normal M0.4 – 1.4 V Leaning 3.7 – 4.4 V When A leaning 65° GP switch voltage 0.6 V and more From 1st to Top Injector voltage S Battery voltage Ignition coil primary peak voltage 80 V and more When cranking STP sensor input voltage 4.5 – 5.5 V STP sensor resistance Approx. 4.69 kΩ Closed Approx. 0.5 kΩ Opened Approx. 3.9 kΩ STP sensor output voltage Closed Approx. 0.5 V Opened Approx. 3.9 V STV actuator resistance Approx. 6.5 Ω EXCVA position sensor input volt- 4.5 – 5.5 V age EXCVA position sensor resistance Approx. 3.1 kΩ At adjustment position EXCVA position sensor output volt- Closed 0.5 – 1.3 V age Opened 3.7 – 4.5 V PAIR control solenoid valve resis- 18 – 22 Ω at 20 – 30 °C (68 – 86 °F) tance
