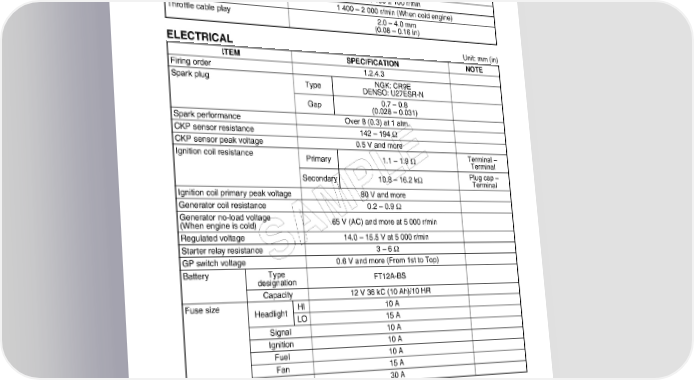

SERVICING INFORMATION 10-55 THROTTLE BODY ITEM SPECIFICATION Bore size 44 mm I.D. No. 41G1 (For E-33), 41G0 (For the others) Idle r/min 1 150 ± 100 r/min Fast idle r/min 1 400 – 2 000 r/min (When cold engine) Throttle cable play 2.0 – 4.0 mm (0.08 – 0.16 in) ELECTRICAL Unit: mm (in) ITEM SPECIFICATION NOTE Firing order 1.2.4.3 Spark plug Type NGK: CR9E DENSO: U27ESR-N Gap 0.7 – 0.8 (0.028 – 0.031) Spark performance Over 8 (0.3) at 1 atm. CKP sensor resistance 142 – 194 Ω CKP sensor peak voltage 0.5 V and more Ignition coil resistance Primary 1.1 – 1.9 Ω Terminal – E Terminal Secondary 10.8 – 16.2 kΩ Plug cap – L Terminal Ignition coil primary peak voltage 80 V and more P Generator coil resistance 0.2 – 0.9 Ω Generator no-load voltage 65 V (AC) and more at 5 000 r/min (When engine is cold) M Regulated voltage A14.0 – 15.5 V at 5 000 r/min Starter relay resistance S 3 – 6 Ω GP switch voltage 0.6 V and more (From 1st to Top) Battery Type FT12A-BS designation Capacity 12 V 36 kC (10 Ah)/10 HR Fuse size Headlight HI 10 A LO 15 A Signal 10 A Ignition 10 A Fuel 10 A Fan 15 A Main 30 A
